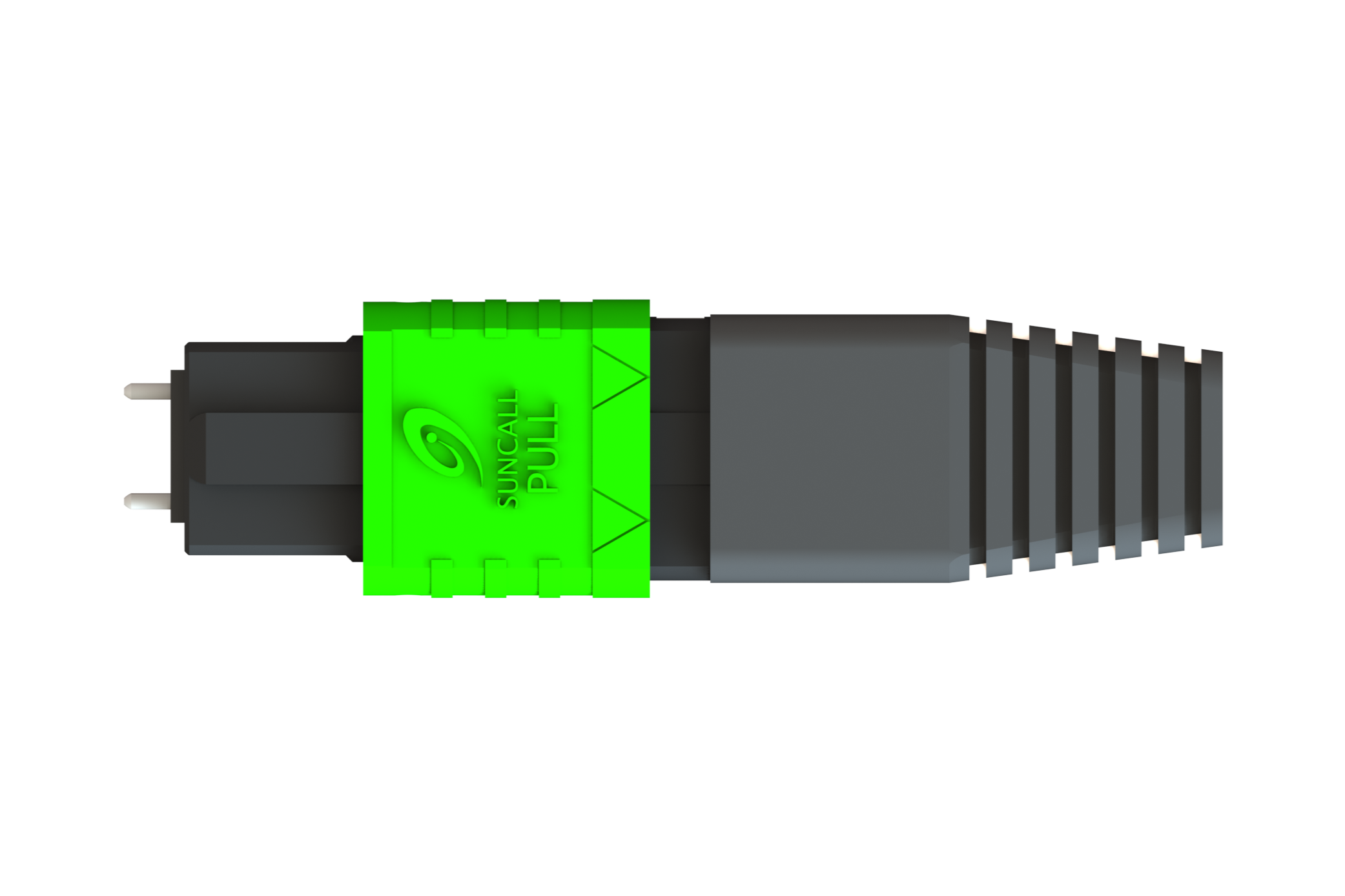

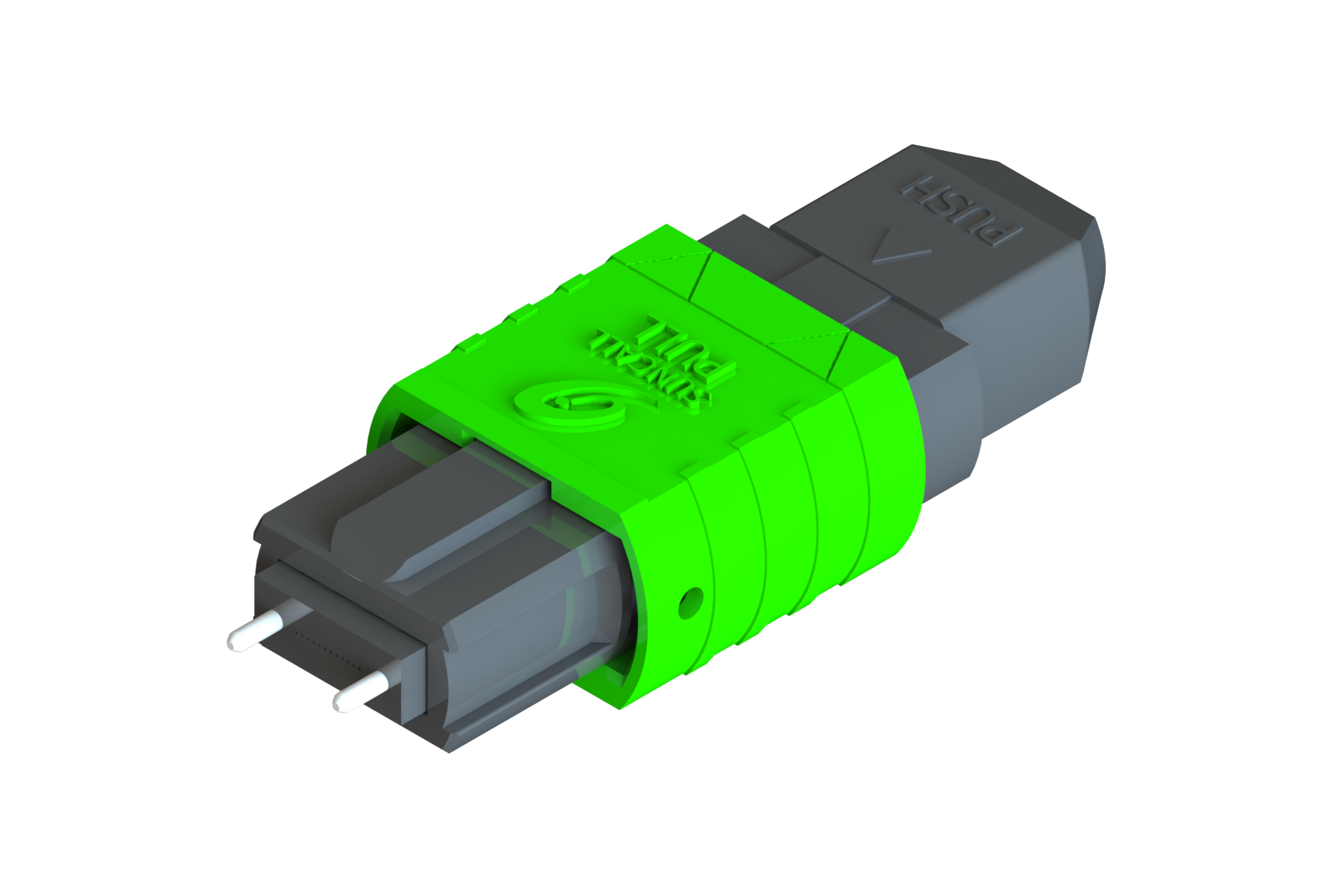

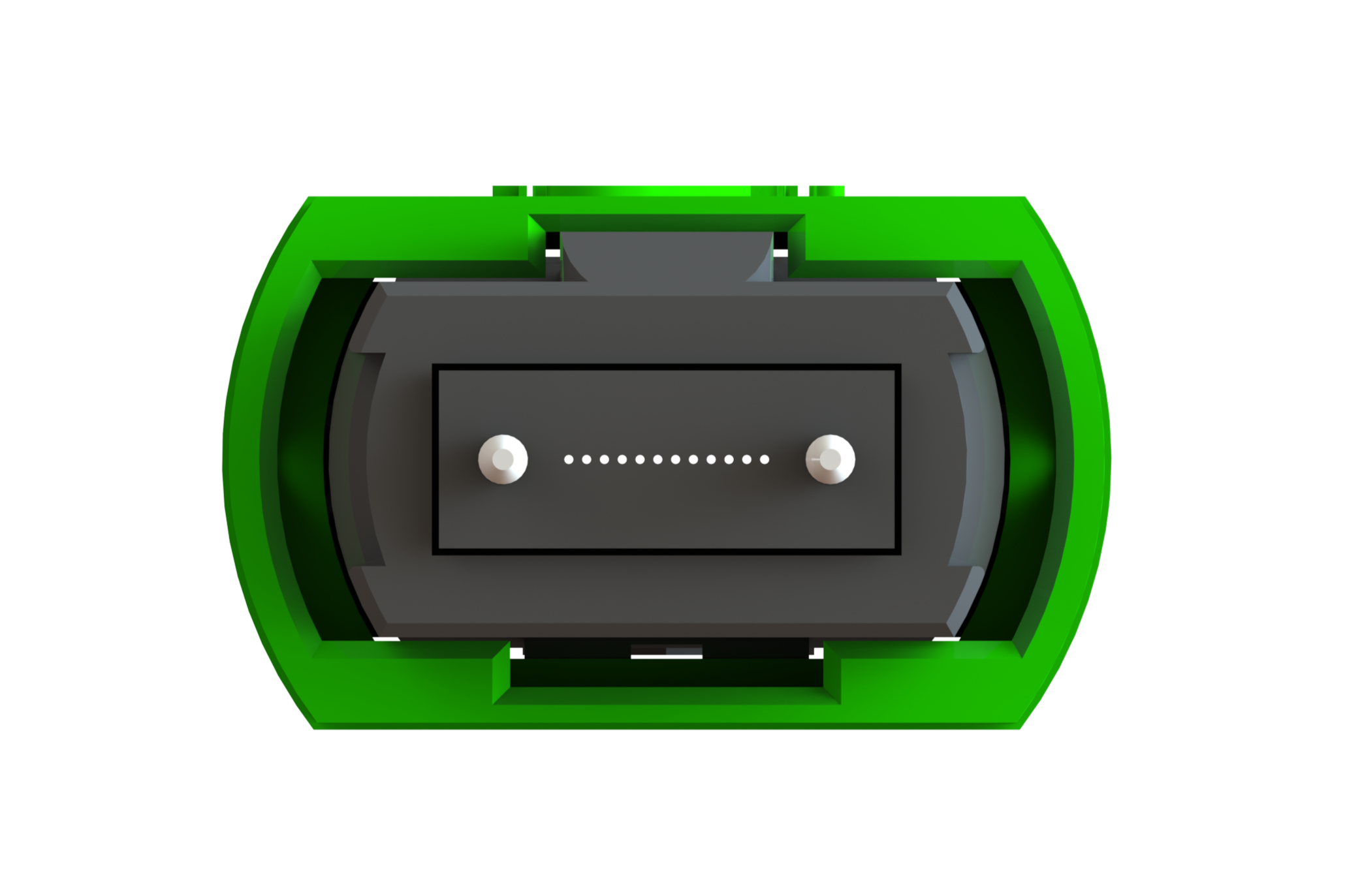

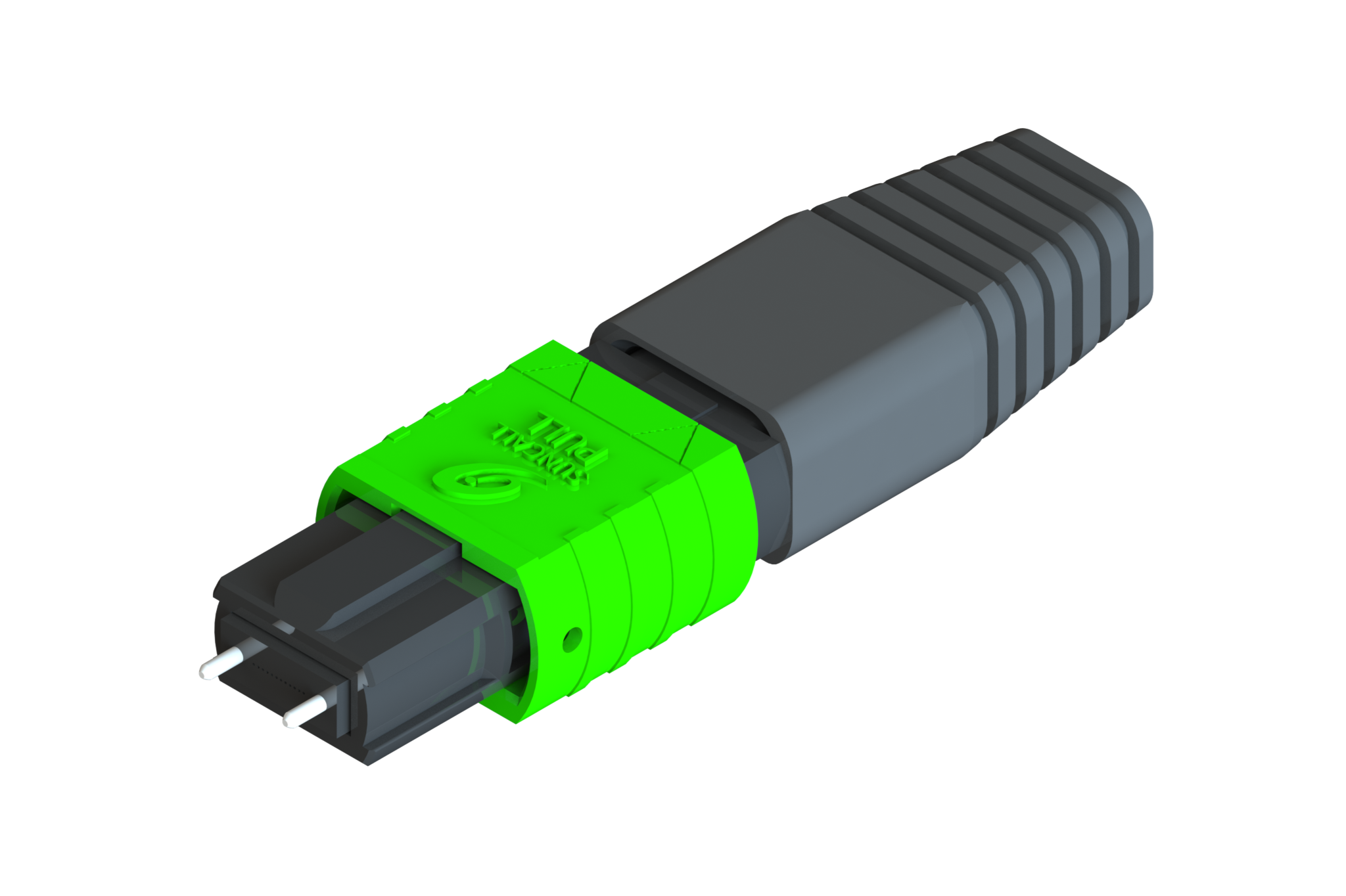

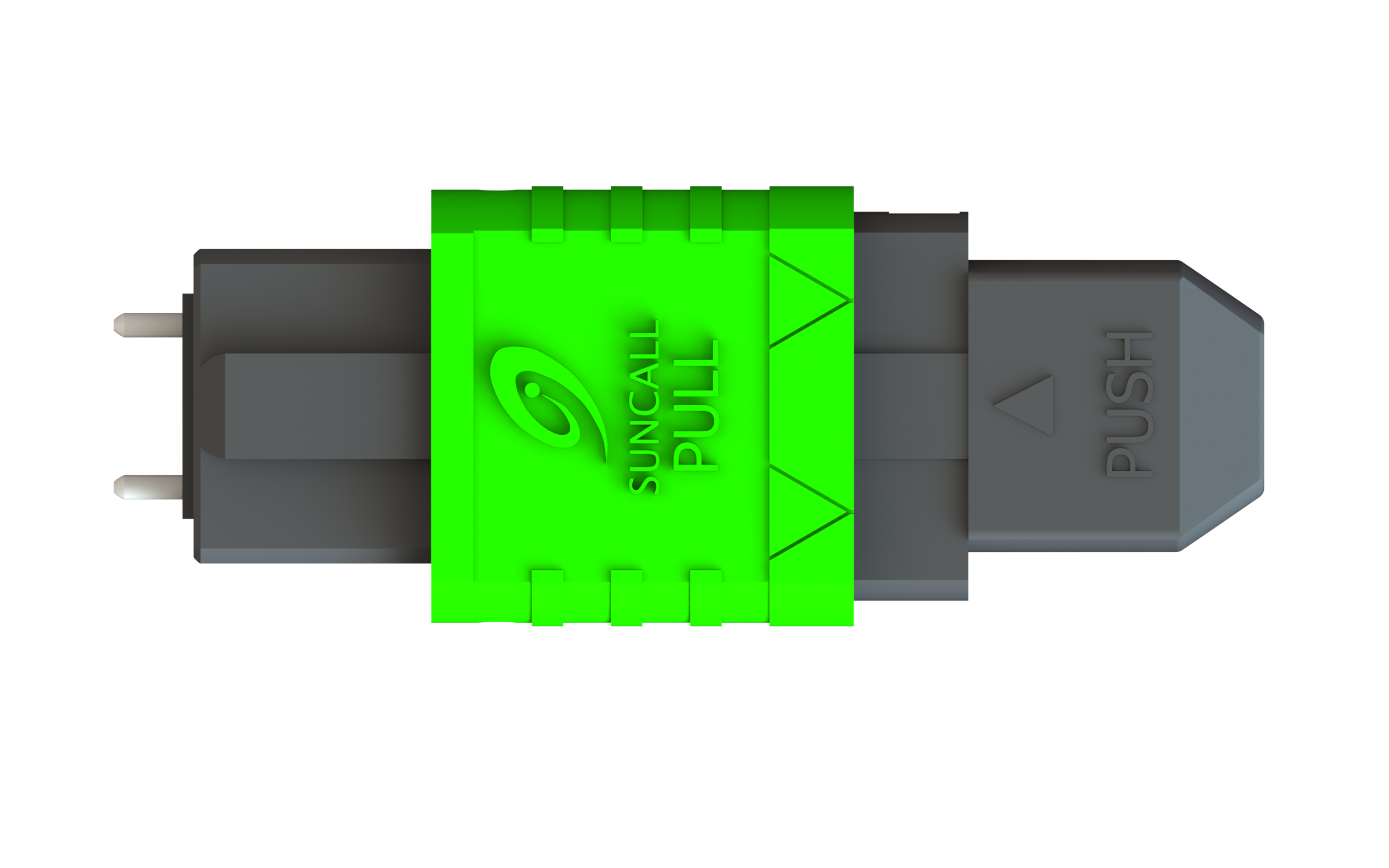

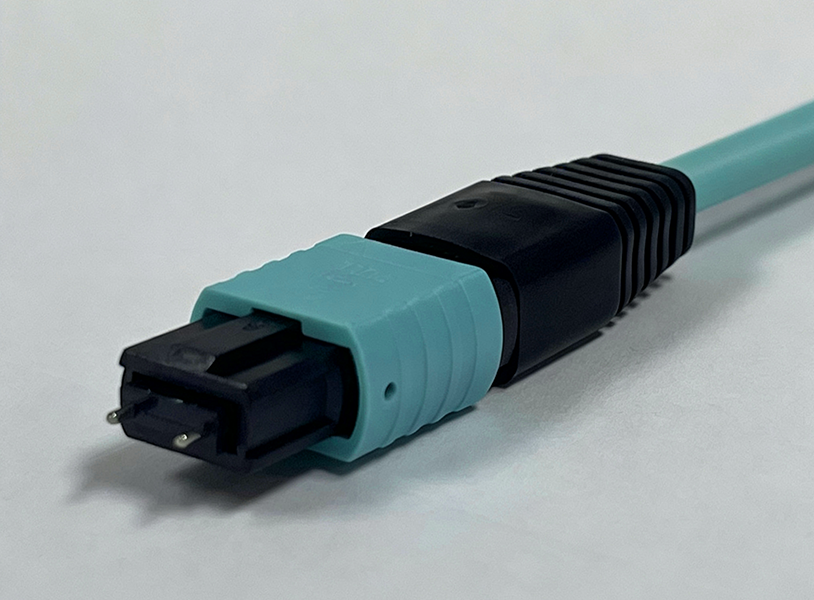

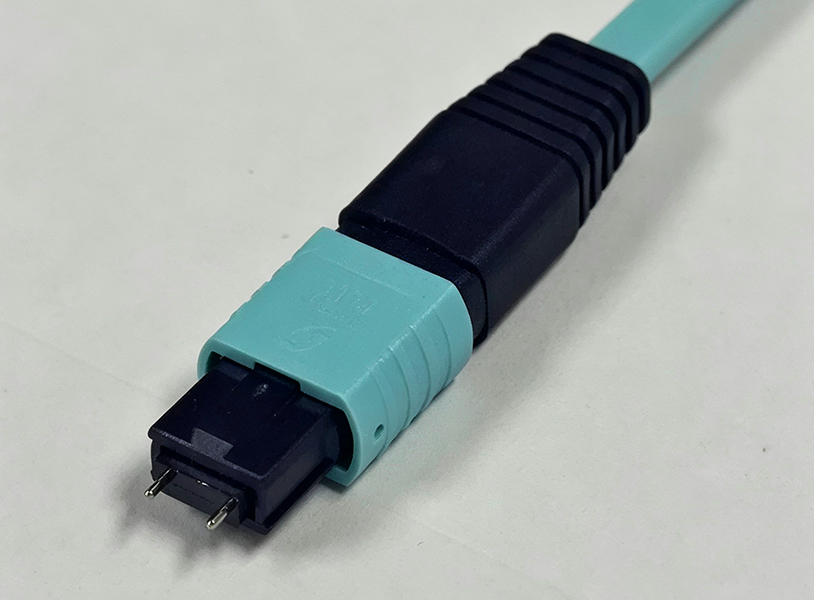

MPO Connector

MPO Connectors provide the exceptional performance and dependability required for the industry's most demanding high-speed systems and networks. Designed with the familiar push-pull operation for easy insertion and removal,our MPO Connectors are built to deliver lower insertion loss-with various boot-type options available. Customize your connector with a variety of options including:boot-type, ferrule type, housing colors, and more.

Housing Color

MPO Connector

Product Features

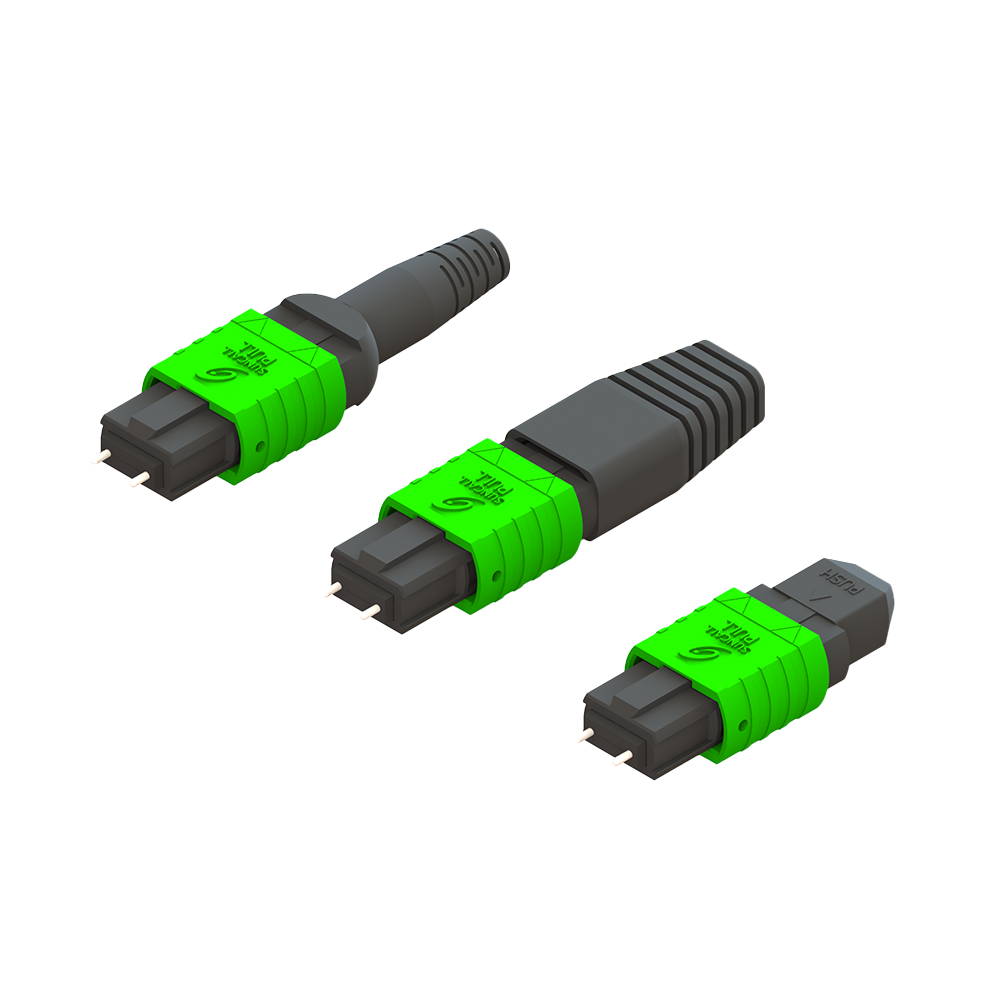

3 boot type: Round short, Round Regular and Ribbon

Available in a variety of housing colors

Fiber Type：12F、24F

Adaptation Pattern：SM, MM, Low Loss SM, Low Loss MM

Insertion Loss：SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB

Return Loss：SL 60dB (8°polish)/SM 60dB (8°polish)/ML 20dB (flat polish)/ MM 20dB (flat polish)

Reference Standard：IEC-61754-7

Select the product specifications here

01

Sort

Model List

Series		Boot Type		Product Type		Housing Color		Ferrule Core/No Ferrule		Boot Type		Crimp Type		Cable Spec		Logo
MPO	MPO Series	PA	Pre Assy	M	Male	AQ	Aqua	W08	8 Core	RS	Round Short Boot	HS	Heat Shrink Tube	20N	Φ 2.0mm Cable (RS only)	L	Suncall Logo
				F	Female	BG	Beige	W12	12 Core	RD	Round Standard Boot	OC	One Crimp	30N	Φ 3.0mm Cable (RD only)	N	No Logo
						GR	Green	W24	24 Core	BS	Ribbon	TC	Two Crimp	35N	Φ 3.5mm Cable
						HV	Heather Violet	N08	8 Core without ferrule	JS	Ribbon with Jacket			NN	NA (BS & JS only)
						YE	Yellow	N12	12 Core without ferrule
								N24	24 Core without ferrule

MPO Connector（Short）4.0mm

2026.03.05

pdf
MPO Round Cable Short Boot Connector

2026.03.05

pdf
MPO Connector（24F Ribbon）

2026.03.05

pdf

MPO Connector Ribbon Fiber with Jacket

2026.03.06

pdf
MPO Connector Ribbon

2026.03.06

pdf
MPO Connector 2.0mm

2026.03.06

pdf

MPO Connector Ribbon SM

2026.03.06

pdf
MPO 12F Connector 3.0mm SM

2026.03.06

pdf
MPO 24F Connector 3.0mm SM

2026.03.06

pdf
MPO 24F Short Boot Connector 3.0mm

2026.03.06

pdf
MPO 12F Short Boot Connector 2.0mm

2026.03.06

pdf
MPO 24F Short Boot Connector

2026.03.06

pdf
MPO 24F Connector Ribbon

2026.03.06

pdf
MPO Connector Ribbon MM

2026.03.06

pdf

MPO Connector

Housing Color

MPO Connector

Product Features

3 boot type: Round short, Round Regular and Ribbon

Available in a variety of housing colors

Select the product specifications here

01

Sort

Model List

MPO Connector（Short）4.0mm

2026.03.05

MPO Round Cable Short Boot Connector

2026.03.05

MPO Connector（24F Ribbon）

2026.03.05

MPO Connector Ribbon Fiber with Jacket

2026.03.06

MPO Connector Ribbon

2026.03.06

MPO Connector 2.0mm

2026.03.06

MPO Connector Ribbon SM

2026.03.06

MPO 12F Connector 3.0mm SM

2026.03.06

MPO 24F Connector 3.0mm SM

2026.03.06

MPO 24F Short Boot Connector 3.0mm

2026.03.06

MPO 12F Short Boot Connector 2.0mm

2026.03.06

MPO 24F Short Boot Connector

2026.03.06

MPO 24F Connector Ribbon

2026.03.06

MPO Connector Ribbon MM

2026.03.06
