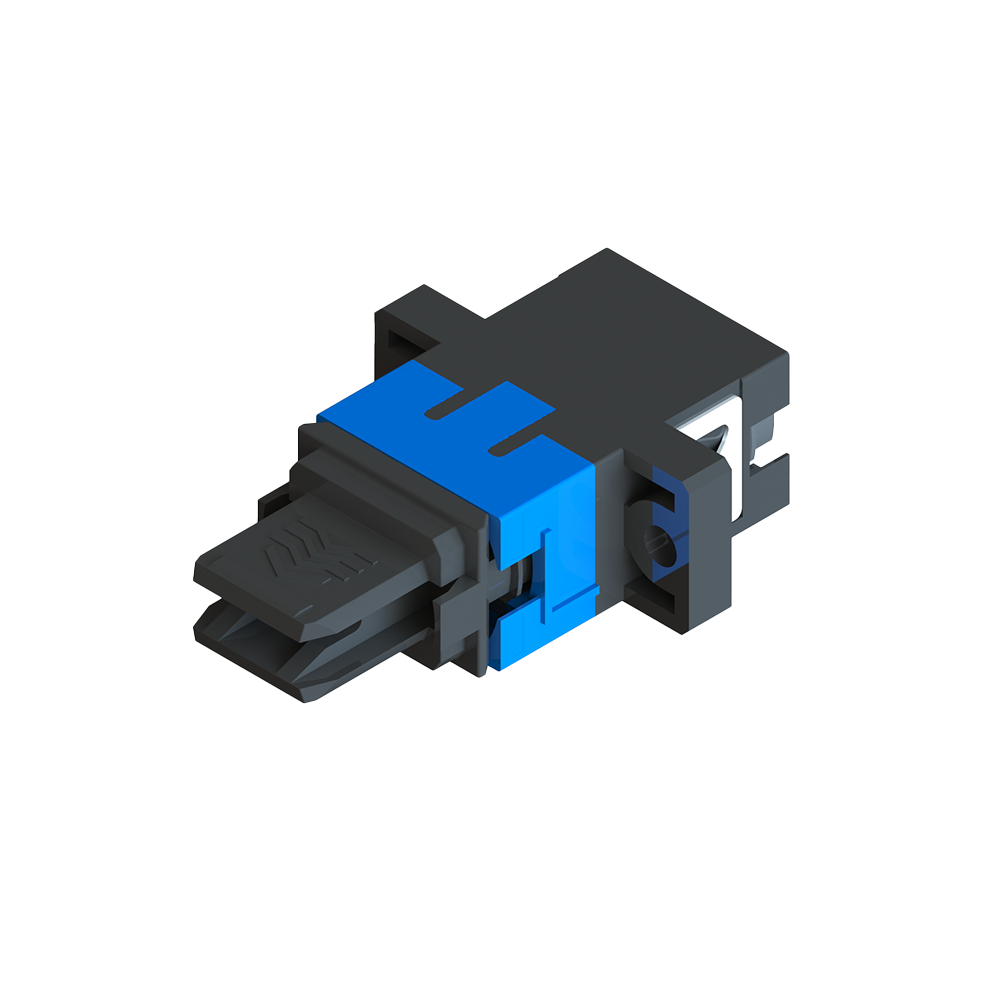

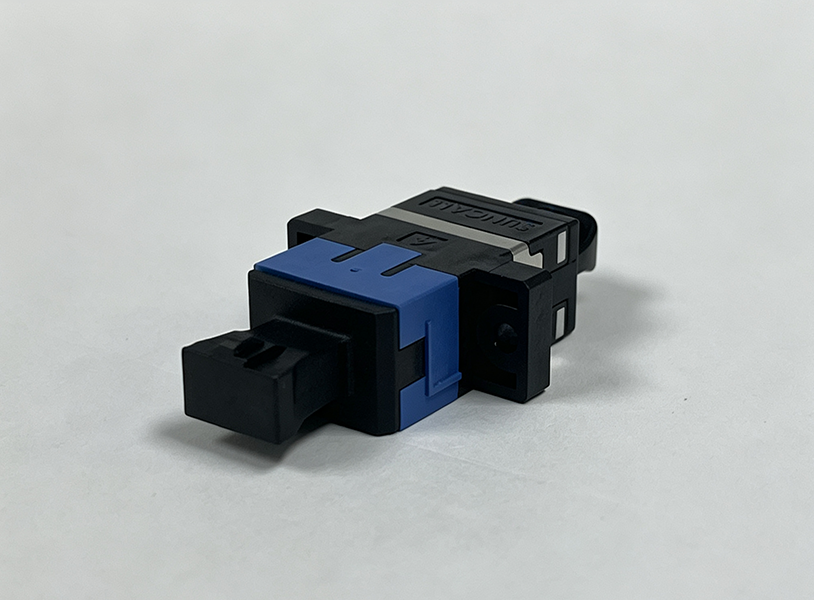

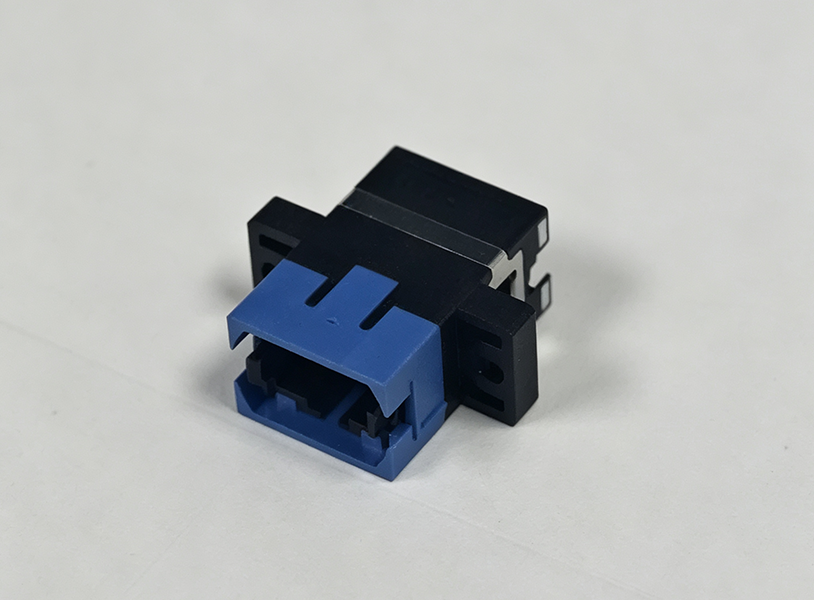

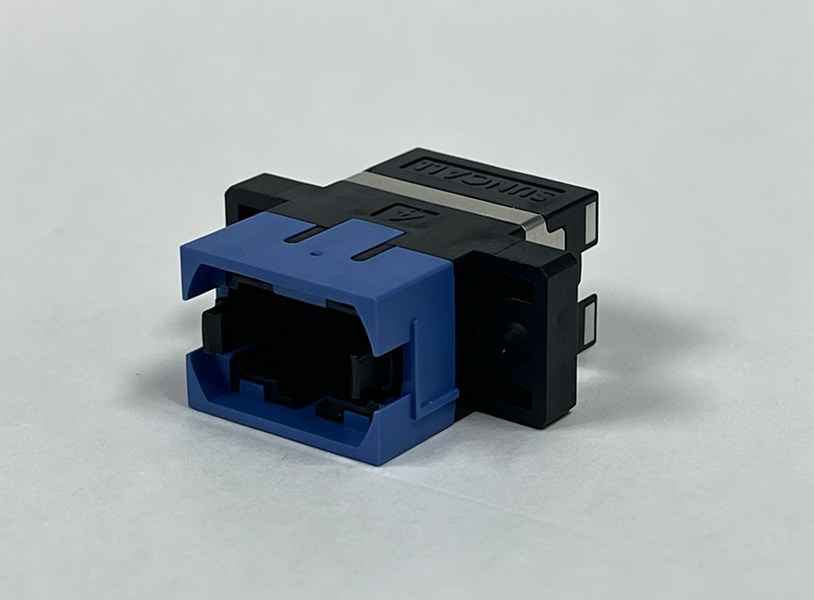

MPO Key Switchable Adapters

MPO Key Switchable Adapters are designed to ensure proper connector orientation and provide reliable connection and performance. Installing this unique adapter allows users to change the adapter interface for key up or key down as needed. MPO Key Switchable Adapters are the user-friendly field solution that virtually eliminates the need for hybrid cable assemblies.

Housing Color

MPO Key Switchable Adapters

Product Features


Flexible and adjustable key position
Wide compatibility


Fiber Type：12F、 24F
Adaptation Pattern：SM, MM, Low Loss SM, Low Loss MM，APC
Insertion Loss：SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB
Return Loss：SL 60dB (8°polish)/SM 60dB (8°polish)/ML 25dB/ MM 25dB
Reference Standard：GR-1435 Compliant IEC 61754-7

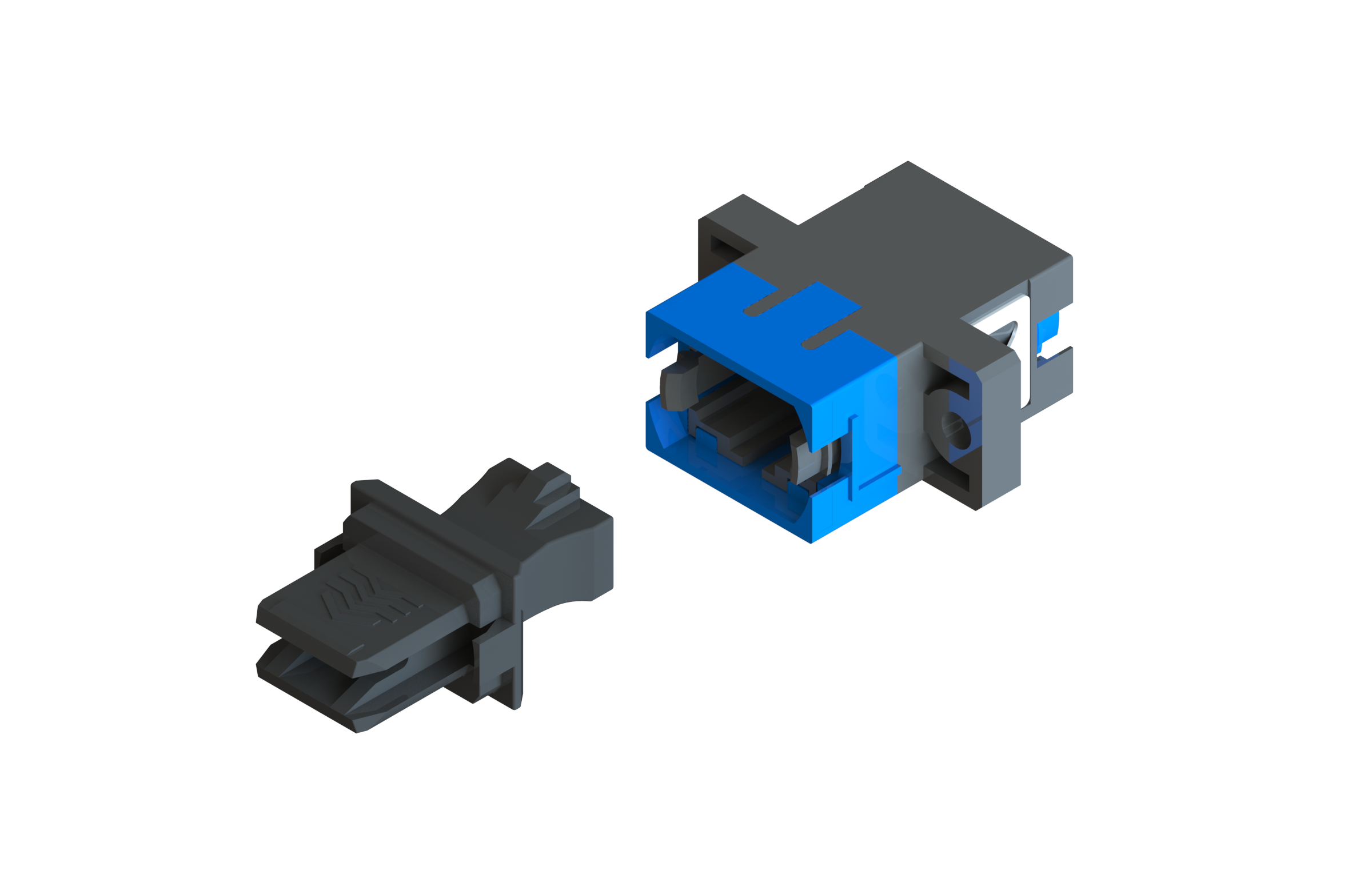

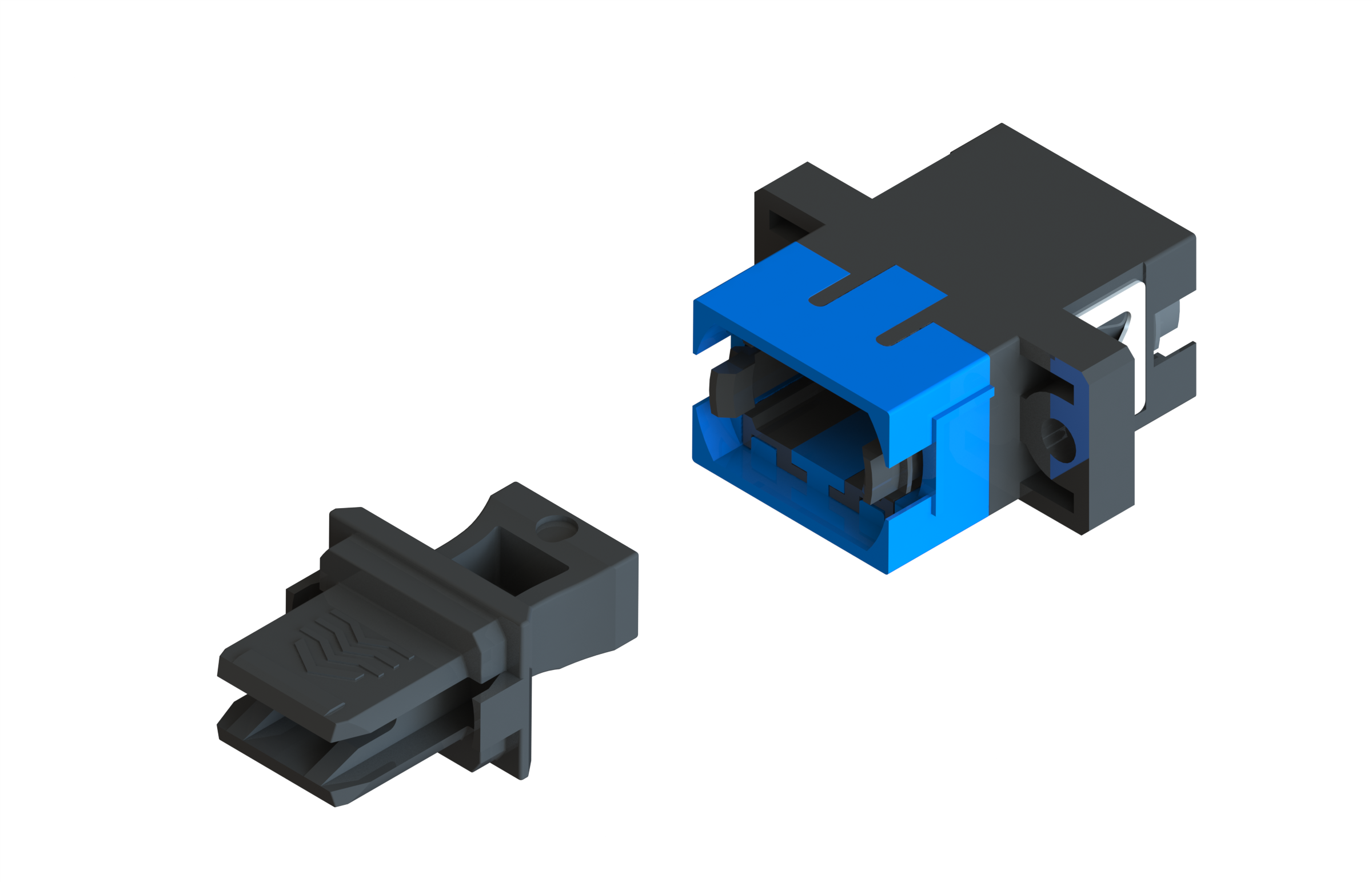

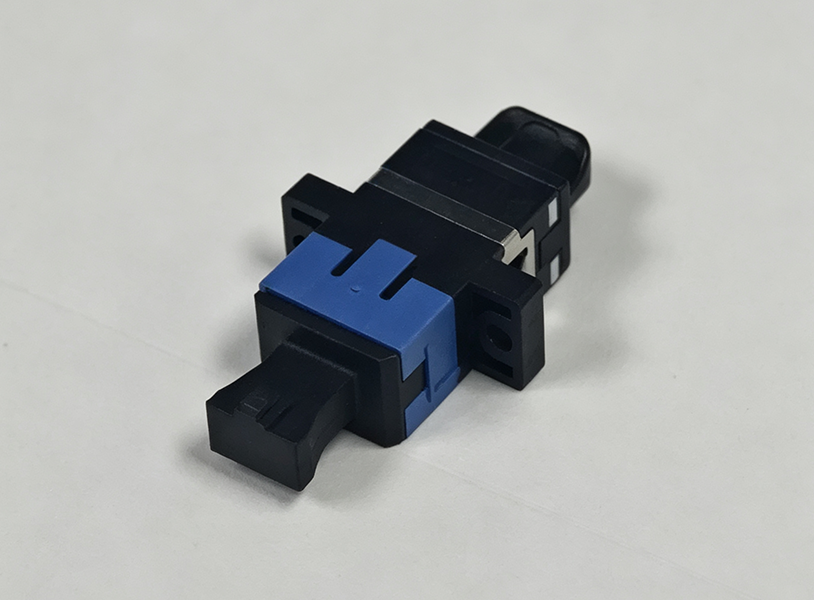

1 Insert the opposite of the dust cap into the adapter

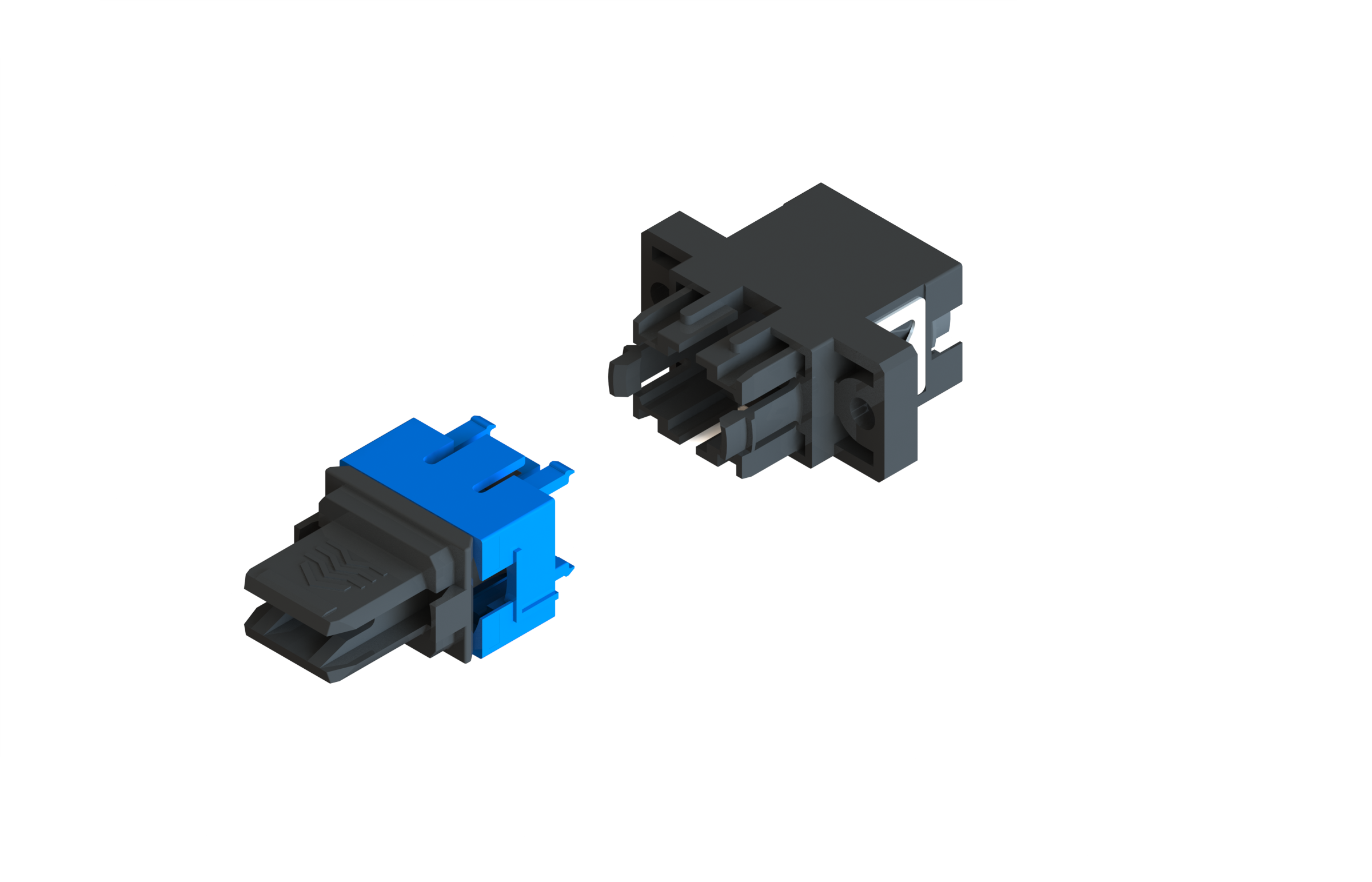

2 Hold the side of the BLUE cap, then extract the cap out
3Rotate the assembly 180º

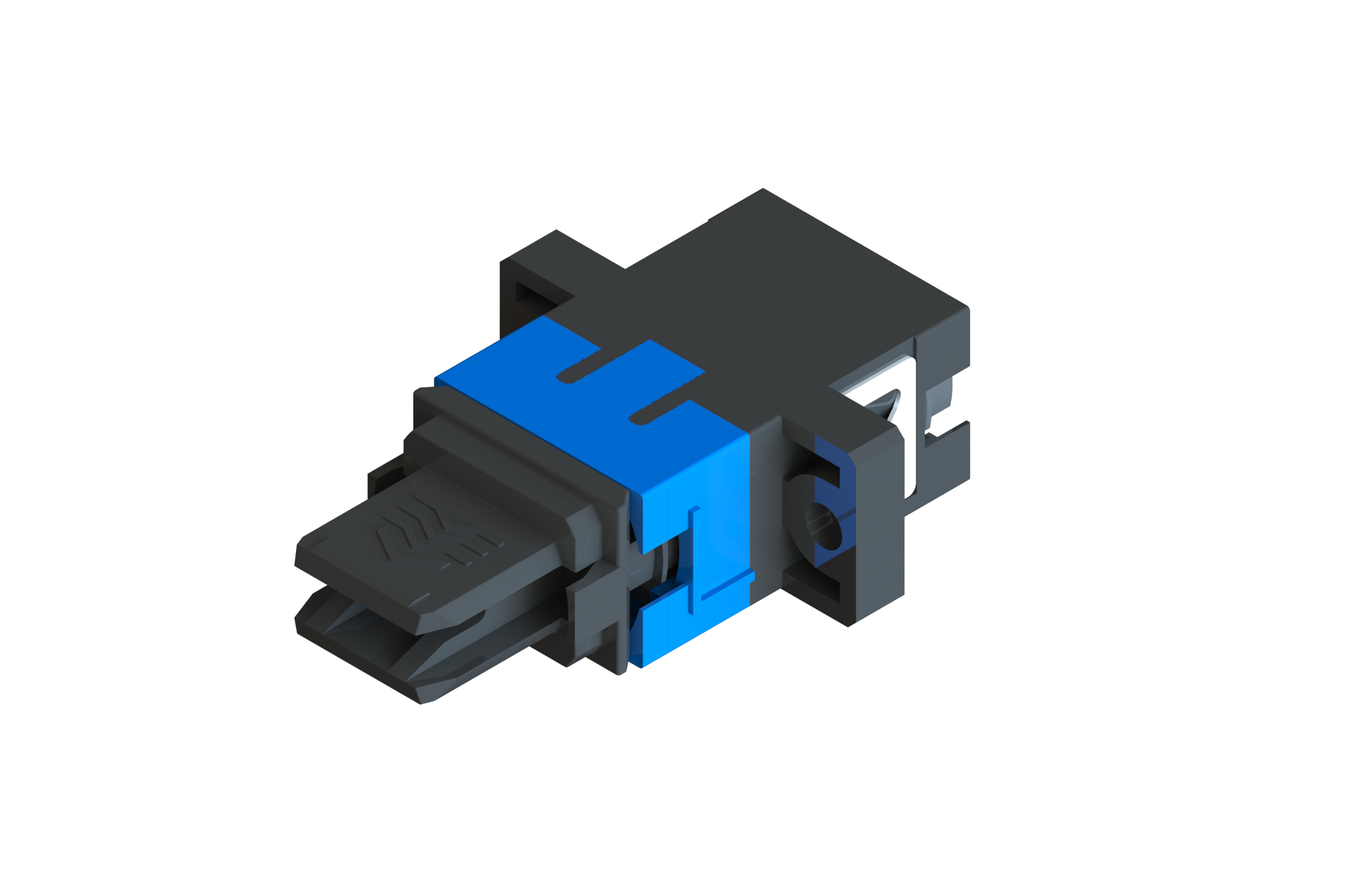

4 Insert the assembly into the adapter body

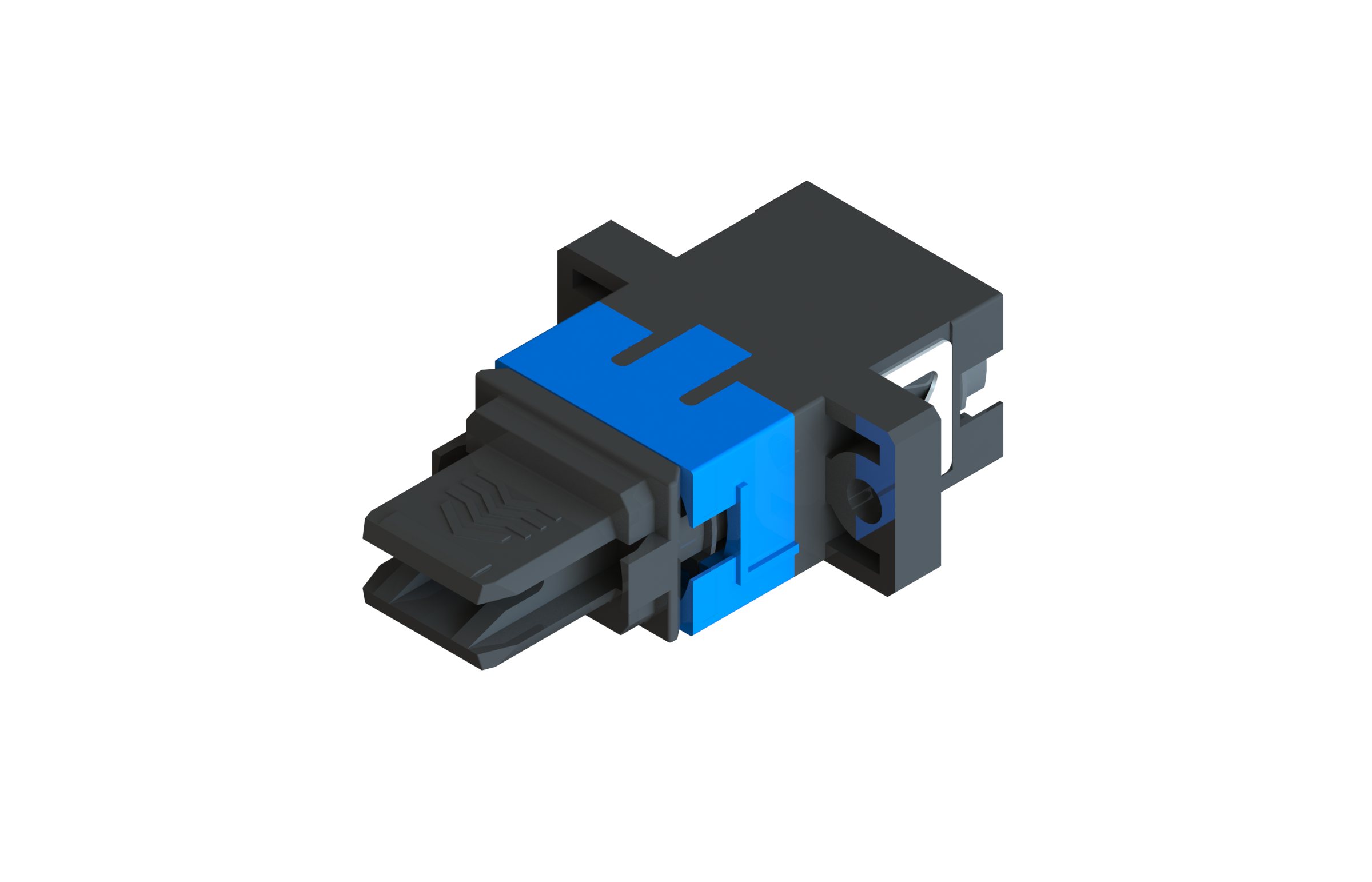

5 Extract the dust cap, it’s complete

Select the product specifications here

  • 01

    Sort

Model List

SeriesFlange TypeHousing ColorLogo
MPOMPO1KSWNNo FlangeBKBlackNNo Suncall Logo


WWith Flange

LWith Suncall Logo
