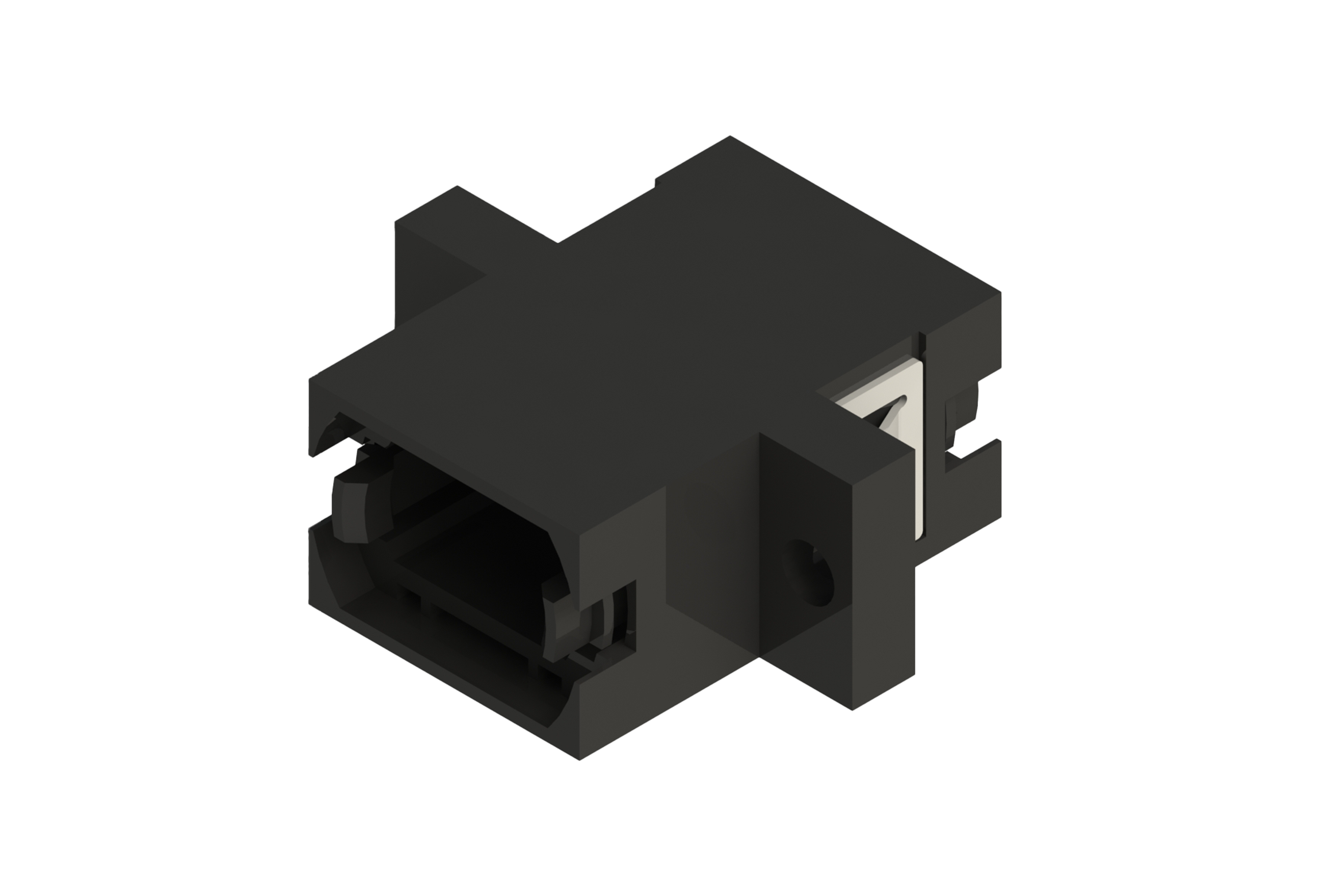

MPO Simplex Adapters

The compact design of our MPO Simplex Adapters allow for single,multi-mode or APC applications with a variety of options and styles to best suit the needs of the application. The MPO Simplex Adapter is compatible with any MPO type product, and the high-density packaging makes it ideal for tight-fitting spaces.

Housing Color

MPO Simplex Adapters

Product Features

Compact design

Available with a flange or a reduced flange

Fiber Type：12F、24F

Adaptation Pattern：SM, MM, Low Loss SM, Low Loss MM

Insertion Loss：SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB

Return Loss：SL 60dB (8°polish)/SM 60dB (8°polish)/ML 20dB (flat polish)/ MM 20dB (flat polish)

Reference Standard：IEC-61754-7-MPO-1996 and TIA-604-5 Type MPO

Select the product specifications here

01

Sort

Model List

Series		Product Type		Shutter Type		Key Type		Spring Type		Flange Type		Housing Color		Logo
MPO	MPO	1	Simplex	N	No Shutter	UU	Key Up-Key Up	W	With Spring	W	With Flange	BK	Black	L	Suncall Logo
						UD	Key Up-Key Down	N	No Spring	N	Reduced Flange	GY	Gray (UU only)	N	No Logo

MPO Simplex Adapters

2026.03.06

pdf
