LC Internal Shutter Regular Adapters-Clusters

Our original LC Internal Shutter Cluster Adapters provide optimum performance and stability. The 6-, 8-, 12-, and 16-core models are available with internal shutters, as well as standard spring or rattle-less style options.Our clusters have a zirconia split-sleeve style and are available in a variety of housing colors.

Housing Color

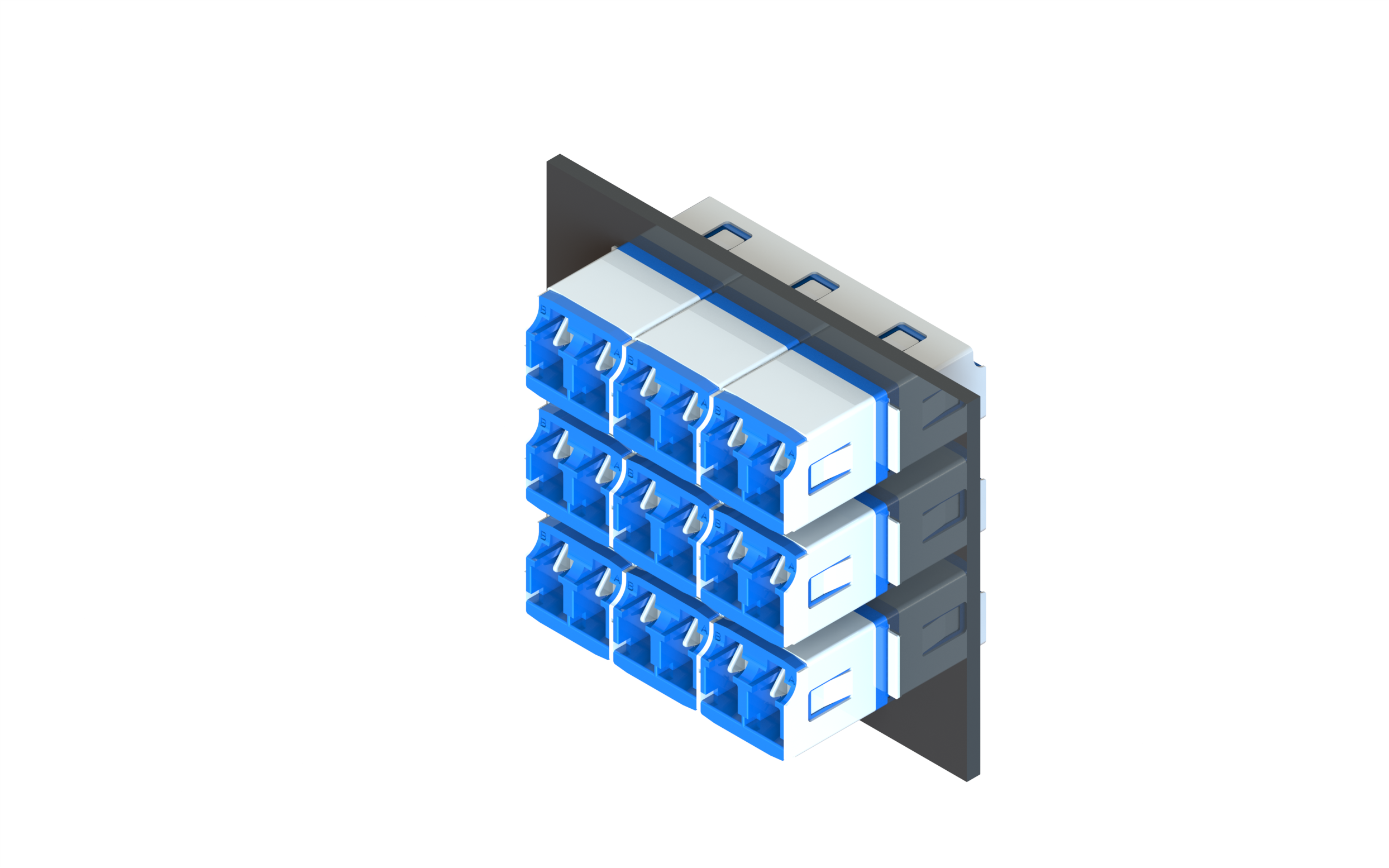

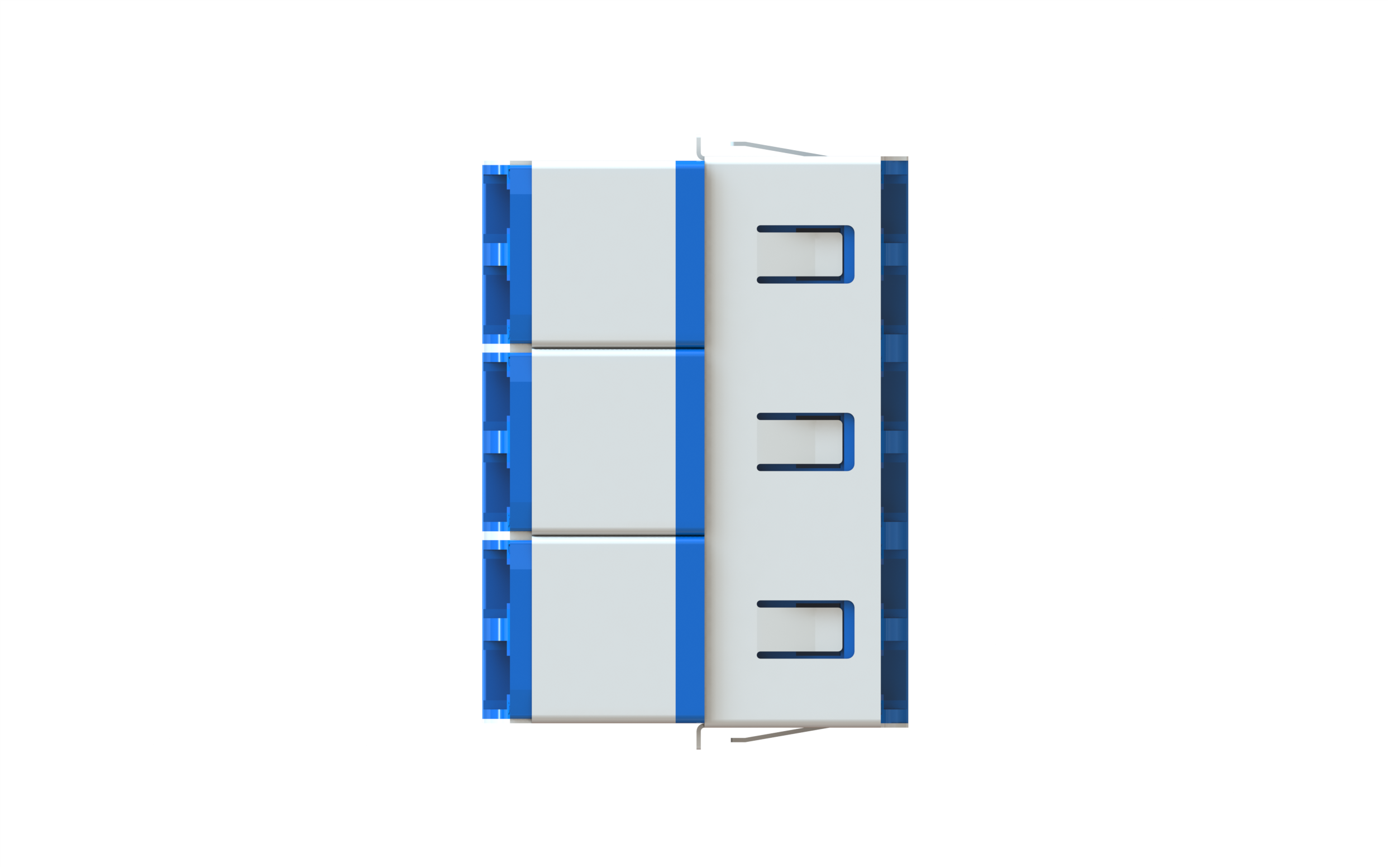

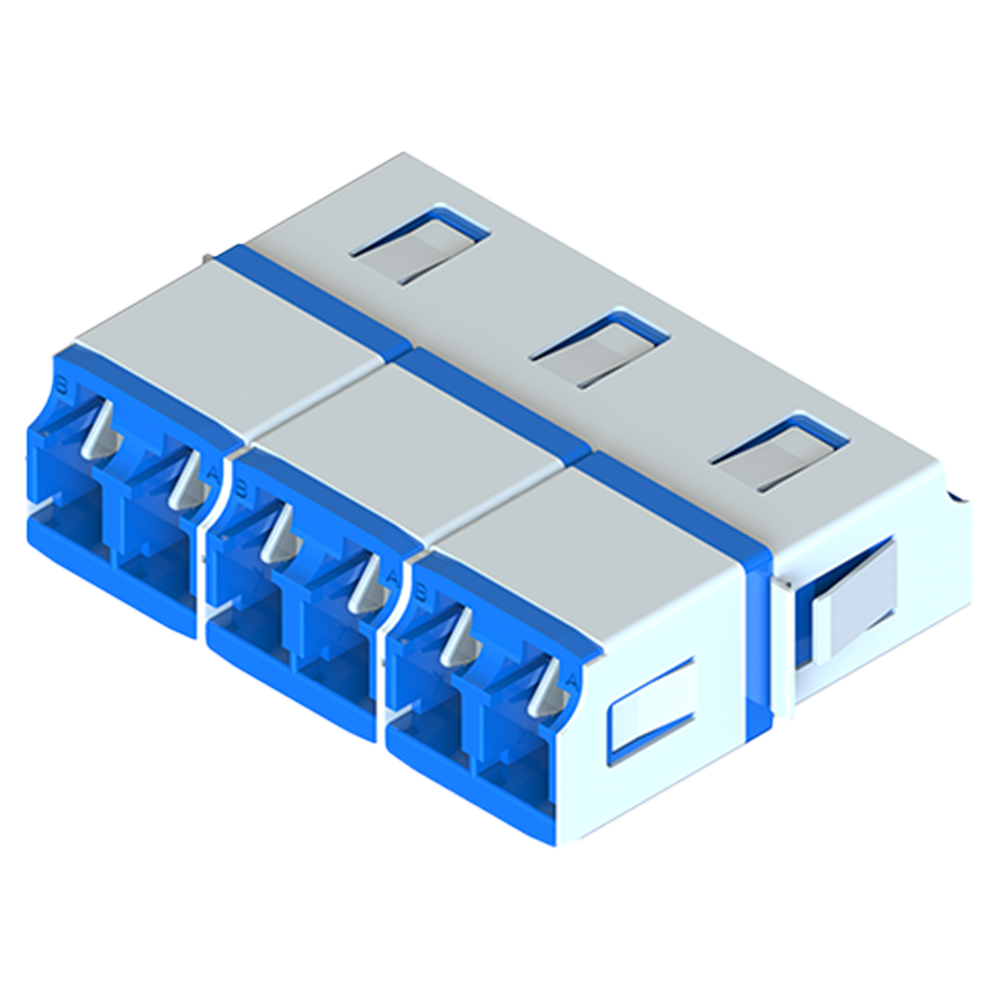

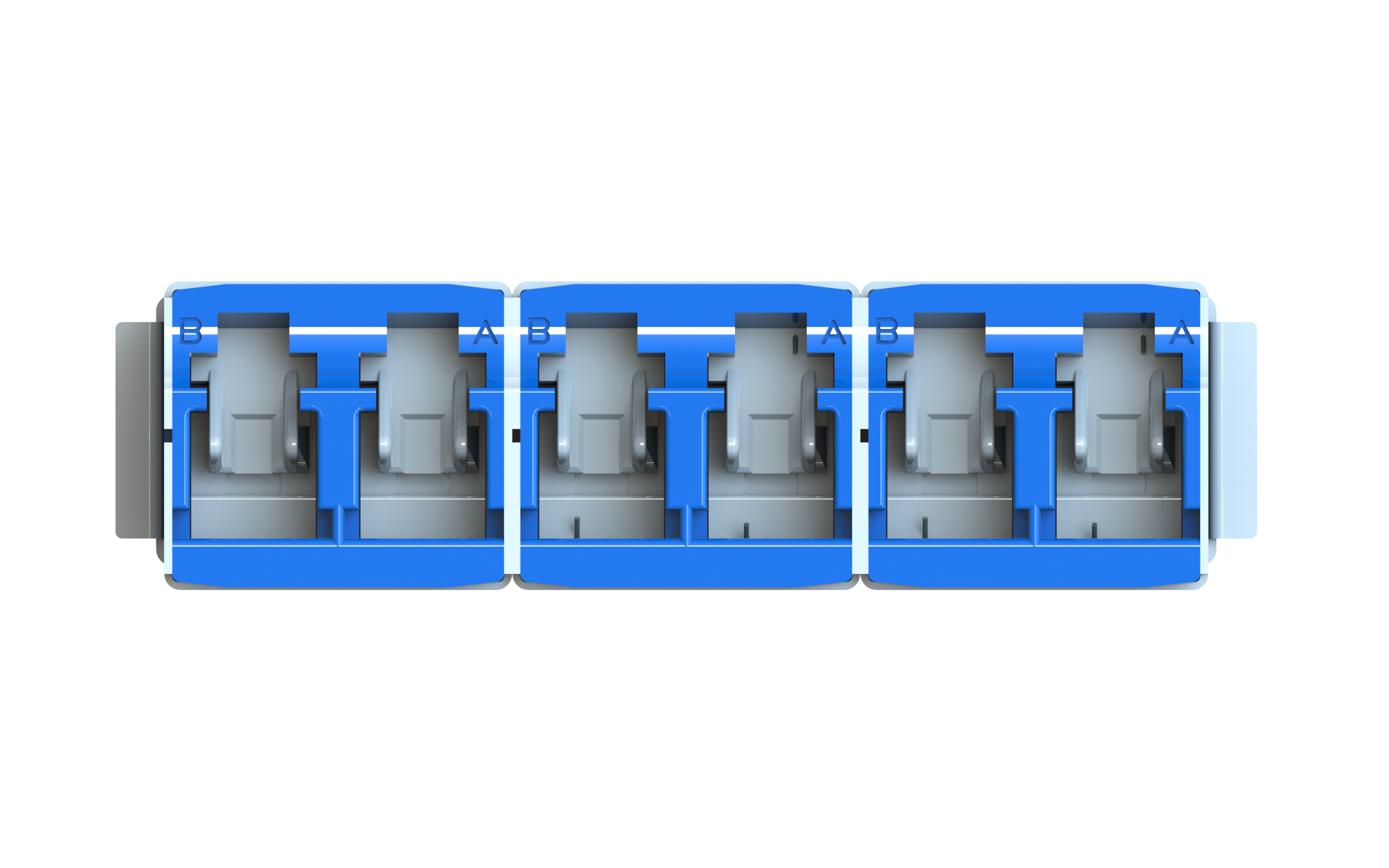

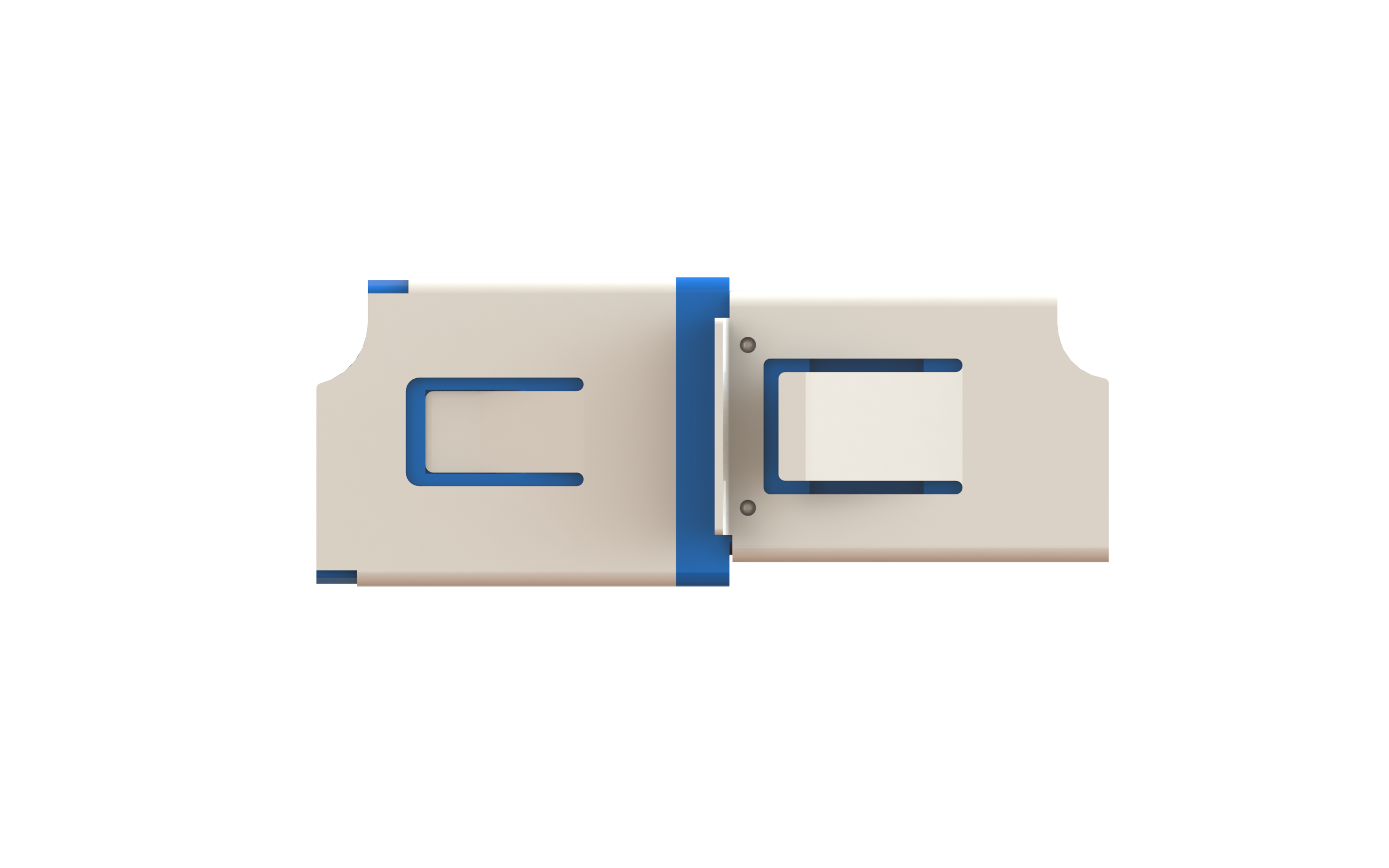

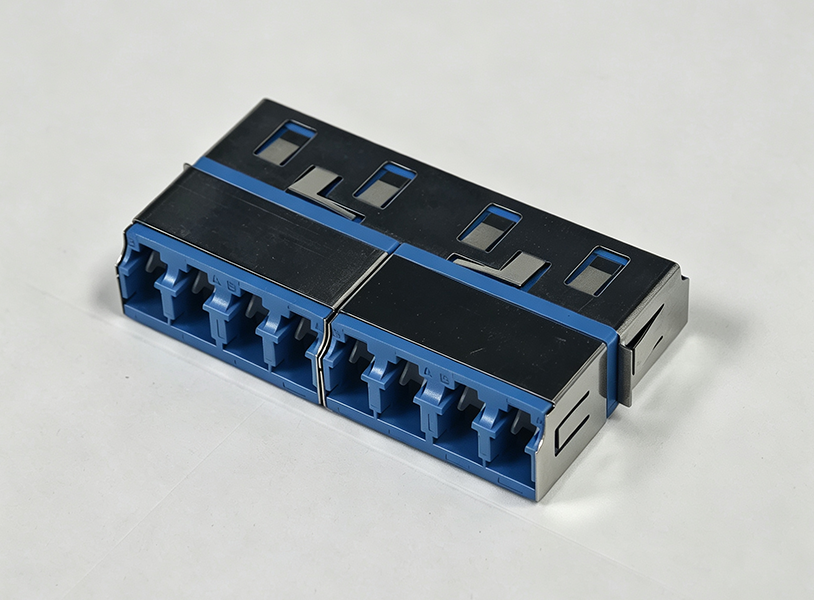

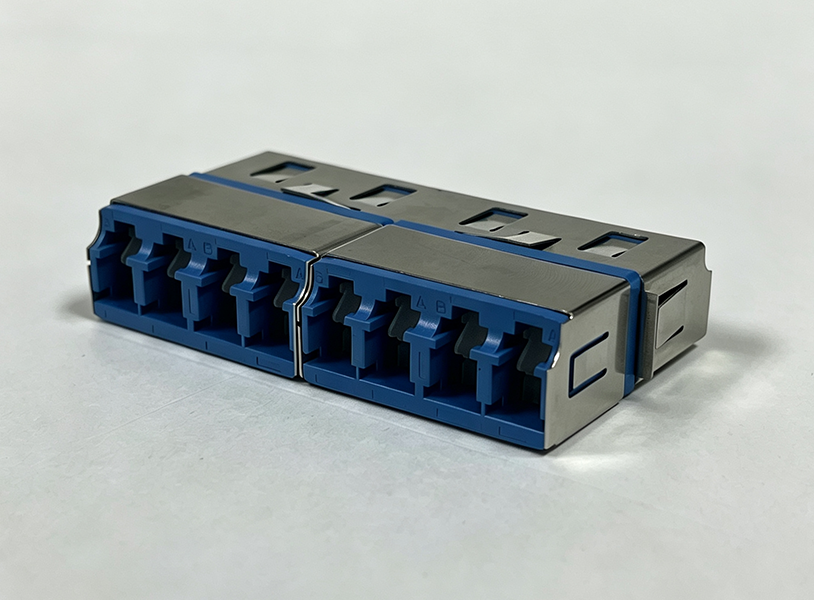

LC Internal Shutter Regular Adapters-Clusters

Product Features

Original height of 11.4mm

6-, 8-, 12-, 16-core models

Shutter doors available in white or translucent

Available in a variety of colors

Fiber Type：SM（9/125），MM（50/125，62.5/125）

Adaptation Pattern：SM，MM，APC

Insertion Loss：0.2dB or lower

Return Loss：UPC(55dB or more) ，APC（65dB or more）

Reference Standard：IEC-61754-20 and TIA-604-10A-2002 Standard-Type LC

Select the product specifications here

01

Sort

Model List

Series		Core		Shutter Type		Spring Type		Housing Type		Sleeve Type		Housing Color
LC	LC Series	6	6 Core	I	Internal Shutter (white)	S	Side Stable Spring	SP	Slimpack (9.6mm)	Z	Zirconia	AQ	Aqua
		8	8 Core	T	Internal Shutter (Translucent)							BG	Beige
		T	12 Core									BK	Black
												BL	Blue
												BR	Brown
												GR	Green
												HV	Heather Violet
												LG	Lime Green
												OG	Orange
												RE	Red
												VT	Violet
												YE	Yellow
