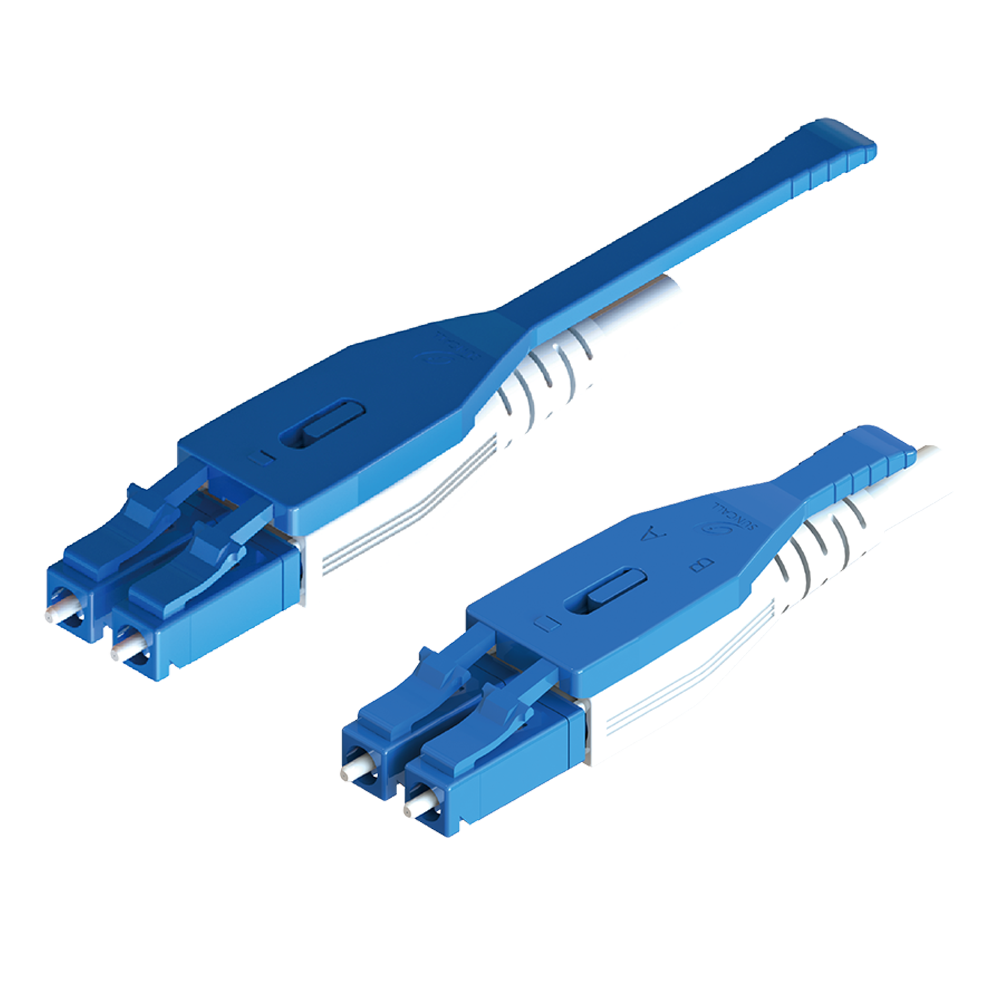

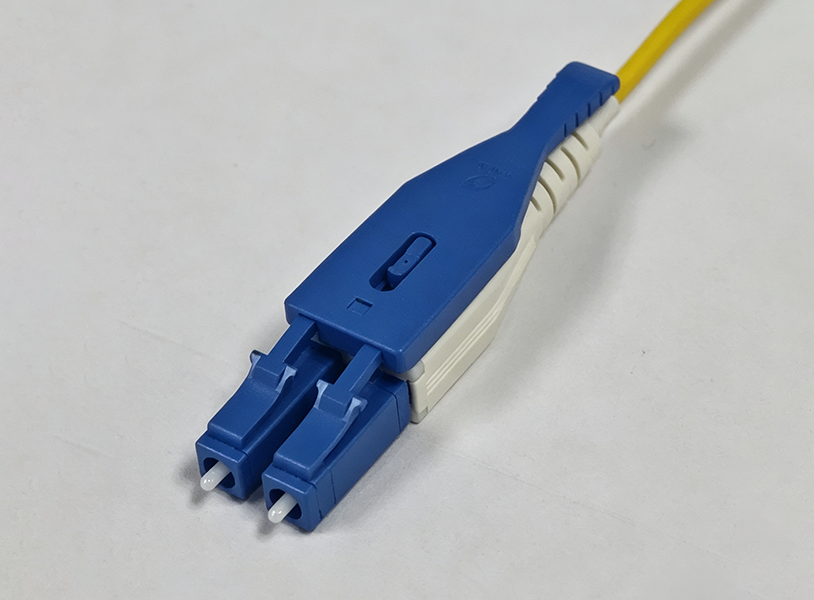

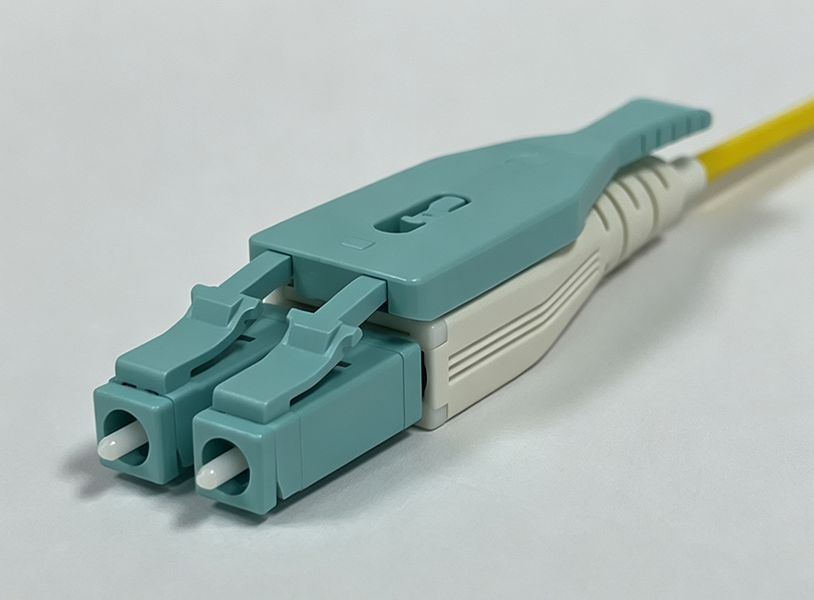

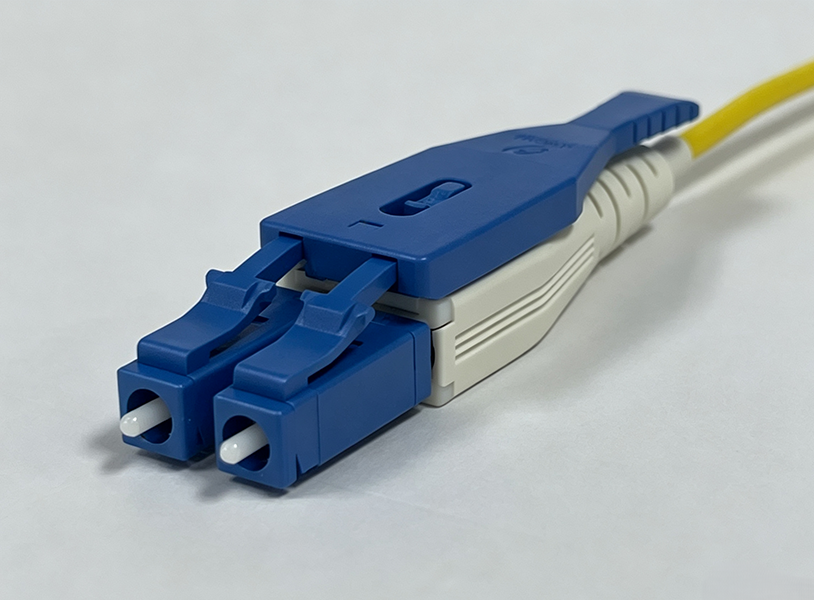

LC Push-Pull Uniboot Connector V4

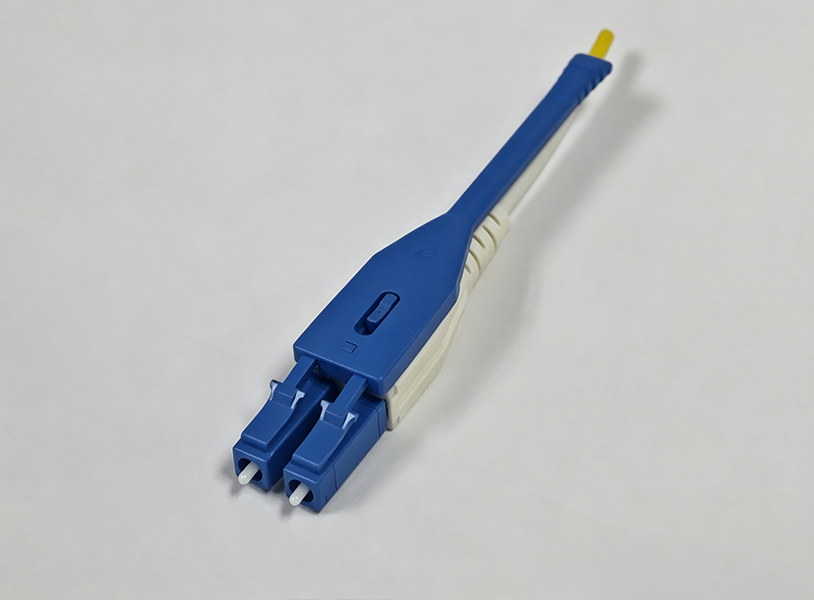

Our enhanced LC Push-Pull Uniboot Connector V4, featuring a precision grip tab, enables easy insertion and removal when used with high-den sity (HD) panels. As an additional advantage, this connector is now also available in a short pull tab design. Both styles incorporate a simple Click & Flip polarity change mechanism (no jig needed), allowing for rapid polarity adjustments in the field without exposing the fiber.

Housing Color

LC Push-Pull Uniboot Connector V4

Product Features

Precision grip for easy Insertion and removal

Easy Click & Flip polarity switch, no jig needed

Available in a variety of colors

Fiber Type：SM（9/125），MM（50/125，62.5/125）

Adaptation Pattern：SM，MM，APC

Insertion Loss：0.3dB or lower

Return Loss：UPC(55dB or more)，APC（65dB or more）

Reference Standard：IEC-61754-20, 1EC-61755-3-1 and TIA-604-10A-2002 Standard-Type LC

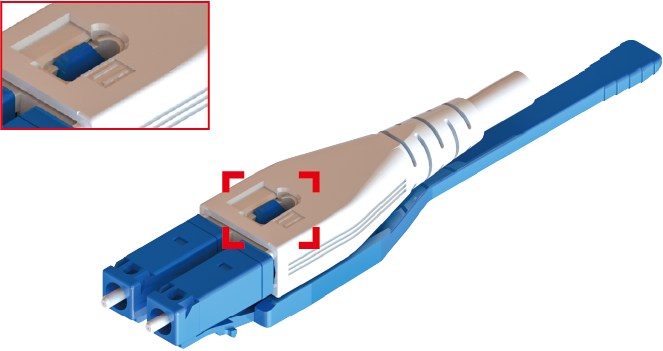

1Click to unlock bottom latch with finger

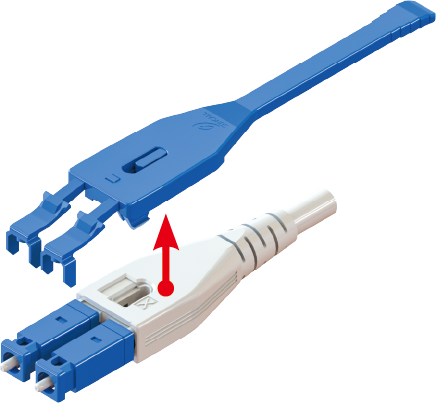

2Remove the latch from Uniboot

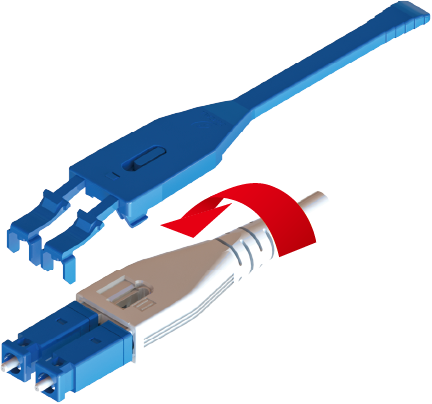

3Flip the connector body 180°

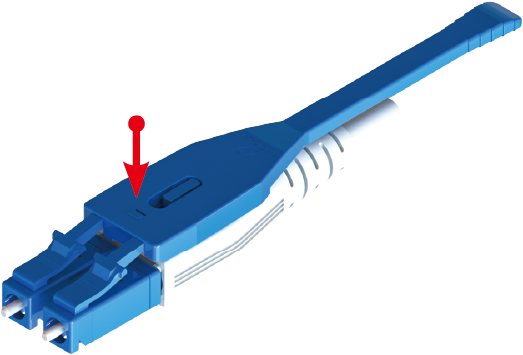

4Push the latch back in until click locks it in

Select the product specifications here

01

Sort

Model List

Body Type		Mode		Boot Type		Product Type		Cable Spec		Housing Color		Ferrule Type & ID		Concentricity		Boot Color		Pull-Tab Color		Dust Cap Type		Shrink Tube Type
LC	LC Connector	S	Single Mode	4P	V4 Long Push Pull	P	Per Assy	16	Φ1.6mm Cable (only 4PS short tab)	AQ	Aqua	F50	125.0um	05	0.5um	WH	White	AQ	Aqua	S	Square Dust Cap	W	White (2.0mm Cable)
		M	Multi Mode	4PS	V4 Short Push Pull	K	Kit	20	Φ2.0mm Cable	BG	Beige	F55	125.5um (SM Standard)	10	1.0um (Standard)			BG	Beige			TW	Thin White (3.0mm Cable)
		A	APC					30	Φ3.0mm Cable (only 4P long tab)	BL	Blue	F60	126.0um	40	4.0um			BL	Blue
										GR	Green							GR	Green
										HV	Heather Violet							HV	Heather Violet
										LG	Lime Green							LG	Lime Green
