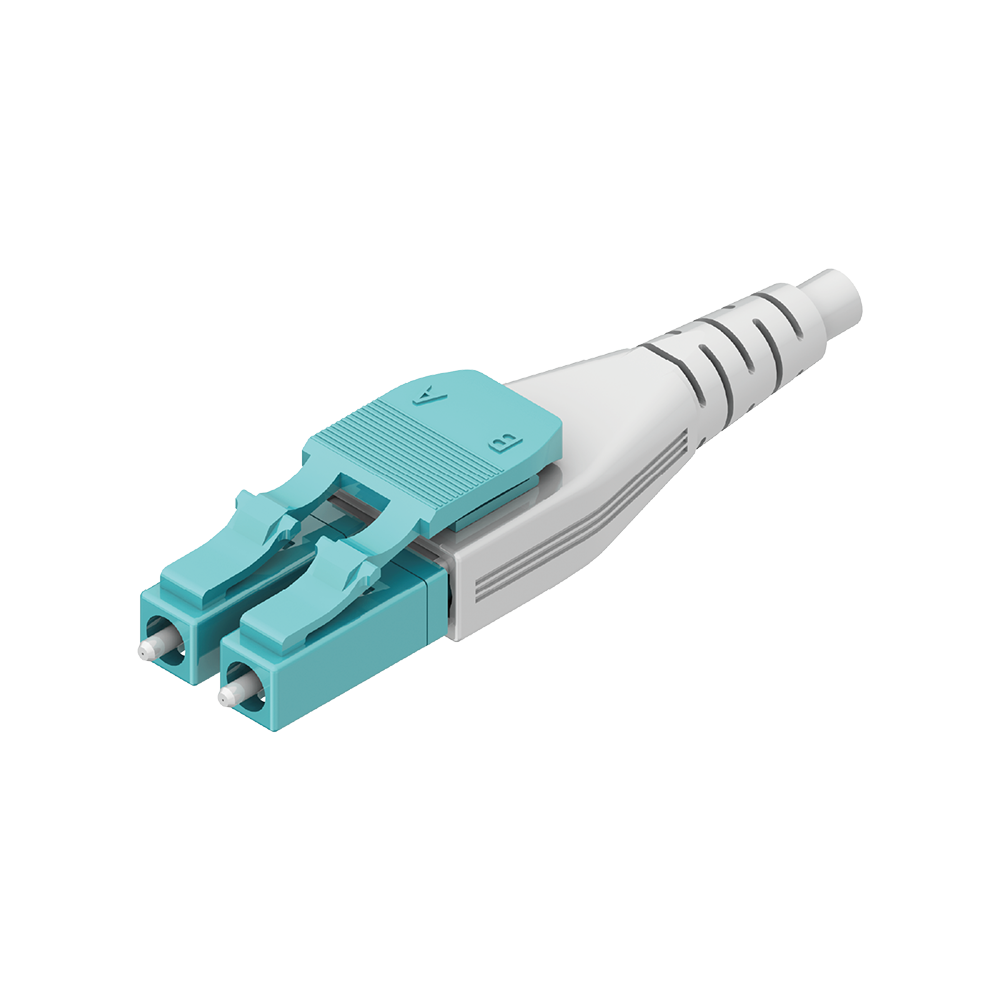

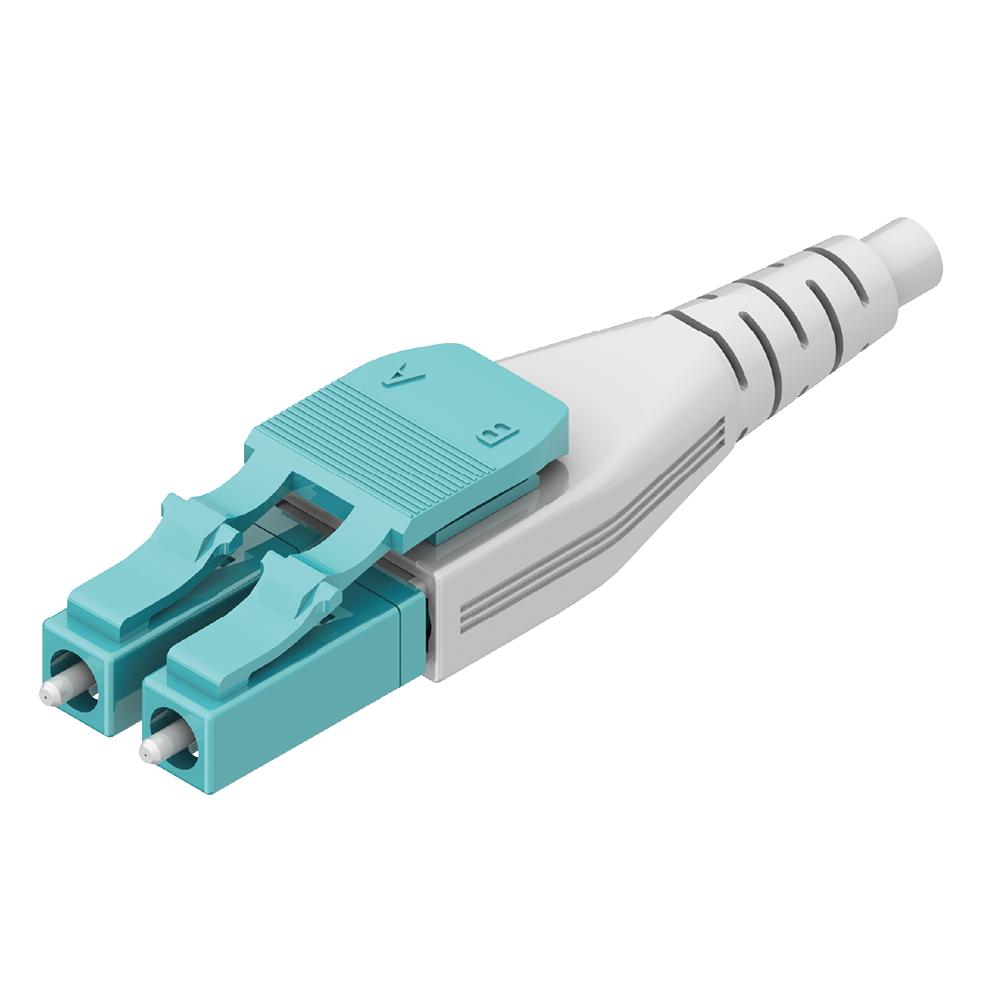

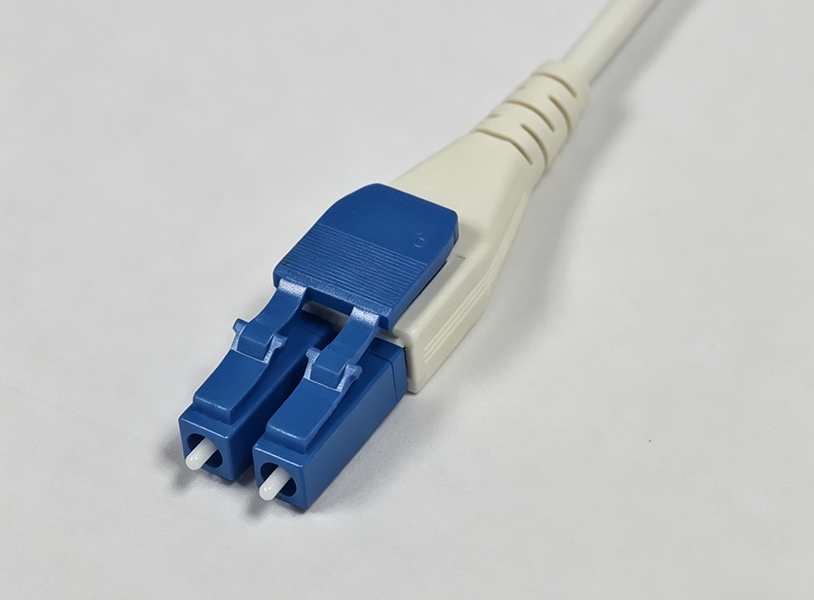

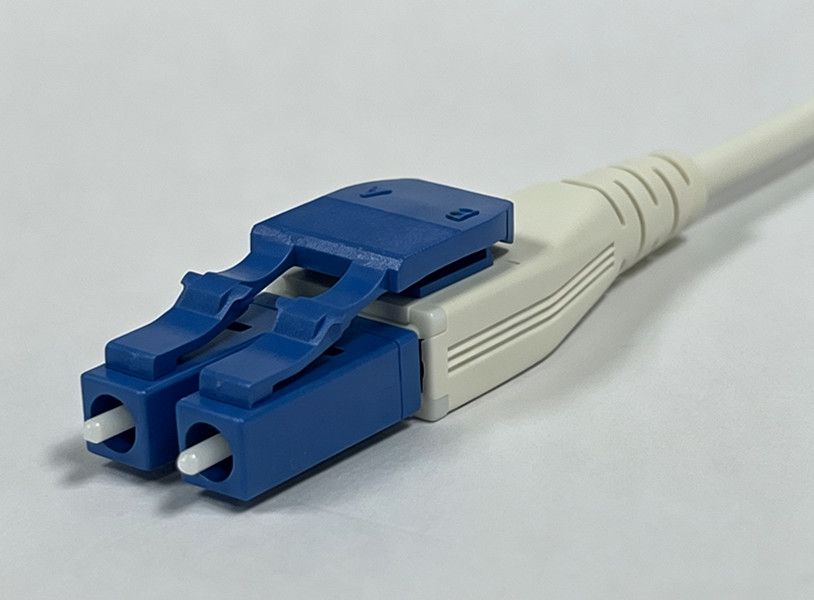

LC Uniboot Connector V4

The LC Uniboot Connector, featuring a simple polarity reversal function, is engineered to deliver a stronger, more stress-resis tant retention force between the connector and cable. Suitable for single-mode, multi-mode, and APC applications, its practical design enables easy engagement and disengagement, even in the most compact panels.

Housing Color

LC Uniboot Connector V4

Product Features

Strong retention force connector

Easy Click & Flip polarity switch, no jig needed

Available in a variety of colors

Fiber Type：SM（9/125），MM（50/125，62.5/125）

Adaptation Pattern：SM，MM，APC

Insertion Loss：0.3dB or lower

Return Loss：UPC（55dB or more ) ，APC（65dB or more ）

Reference Standard：IEC-61754-20, IEC-61755-3-2 and TlA-604-10A-2002 Standard-Type LC

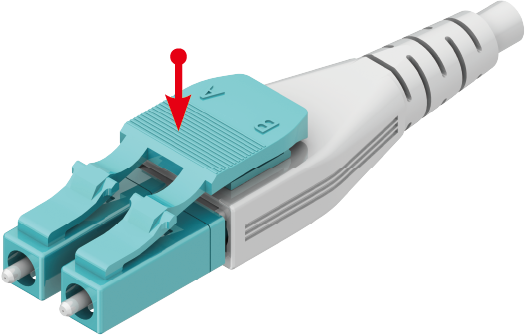

1Click to unlock bottom latch with finger

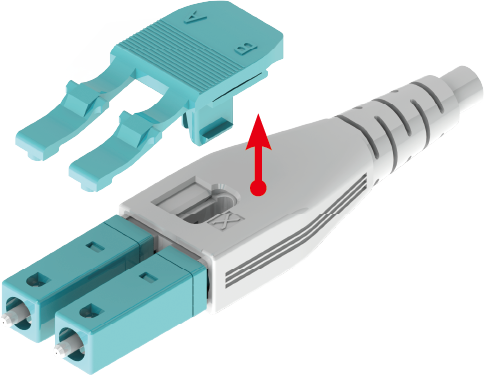

2Remove the latch from Uniboot

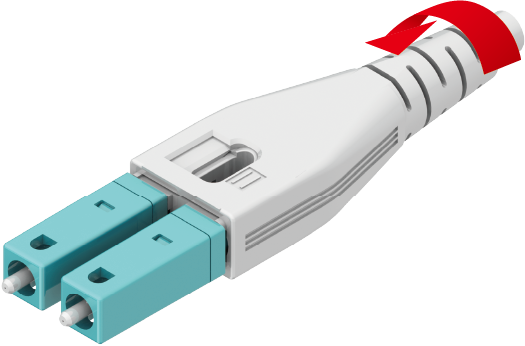

3Flip the connector body 180°

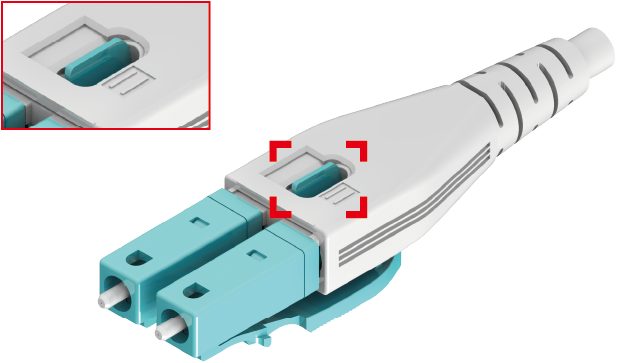

4Push the latch back in until click locks it in

Select the product specifications here

01

Sort

Model List

Body Type		Mode		Product Type		Cable Spec		Housing Color		Ferrule Type & ID		Concentricity		Boot Color		Dust Cap Type		Shrink Tube Type
LC	LC Connector	SNH6	Single Mode	P	Per Assy	16	Φ1.6mm Cable	AQ	Aqua	F50	125.0um	05	0.5um	GR	Green	S	Square Dust Cap	W	White (2.0mm Cable)
		MNH6	Multi Mode	K	Kit	20	Φ2.0mm Cable	BG	Beige	F55	125.5um (SM Standard)	10	1.0um (Standard)	WH	White (Standard)			TW	Thin White (3.0mm Cable)
		ANH6	APC			30	Φ3.0mm Cable	BL	Blue	F60	126.0um	40	4.0um
								GR	Green
								HV	Heather Violet
								LG	Lime Green

LC Uniboot Connector v4 1.6mm

2026.03.05

pdf
LC Uniboot Connector v4 2.0&3.0mm

2026.03.05

pdf

LC Uniboot Connector v4

2026.03.06

pdf

LC Uniboot Connector v4 2.0mm (G657A1)

2026.03.06

pdf
LC Uniboot Connector v4 2.0mm (Corning G657A1 Optical Fiber)

2026.03.06

pdf
