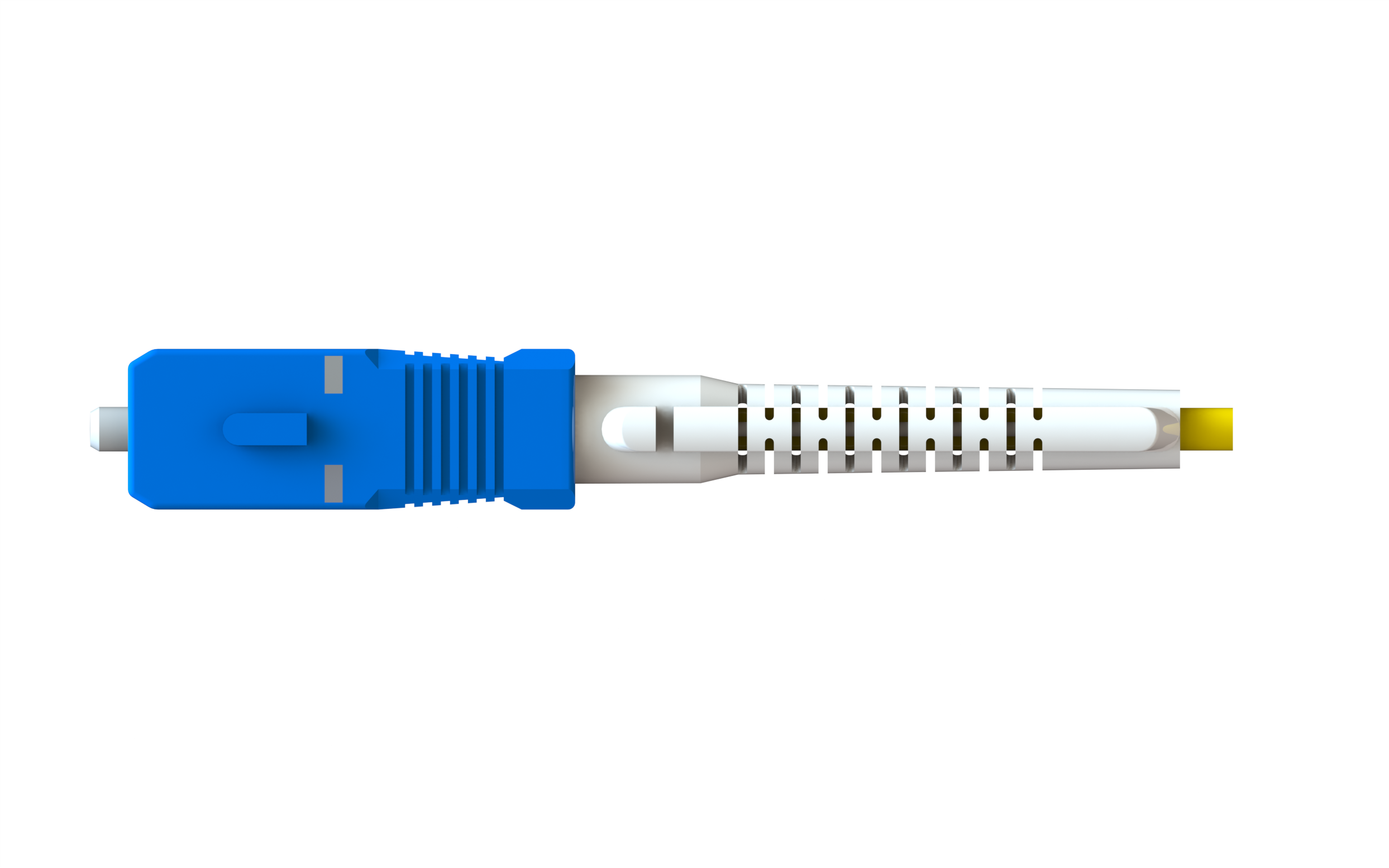

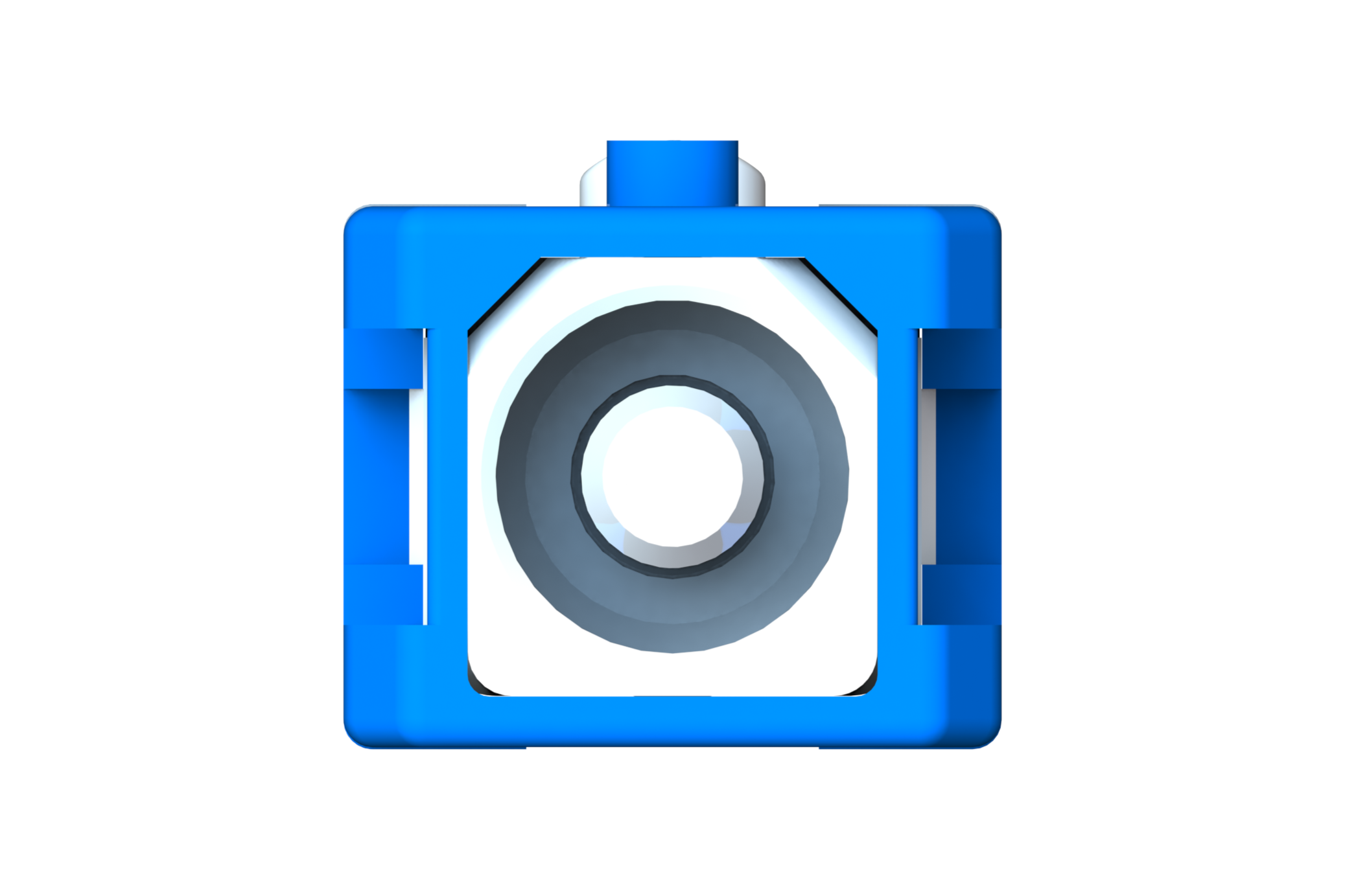

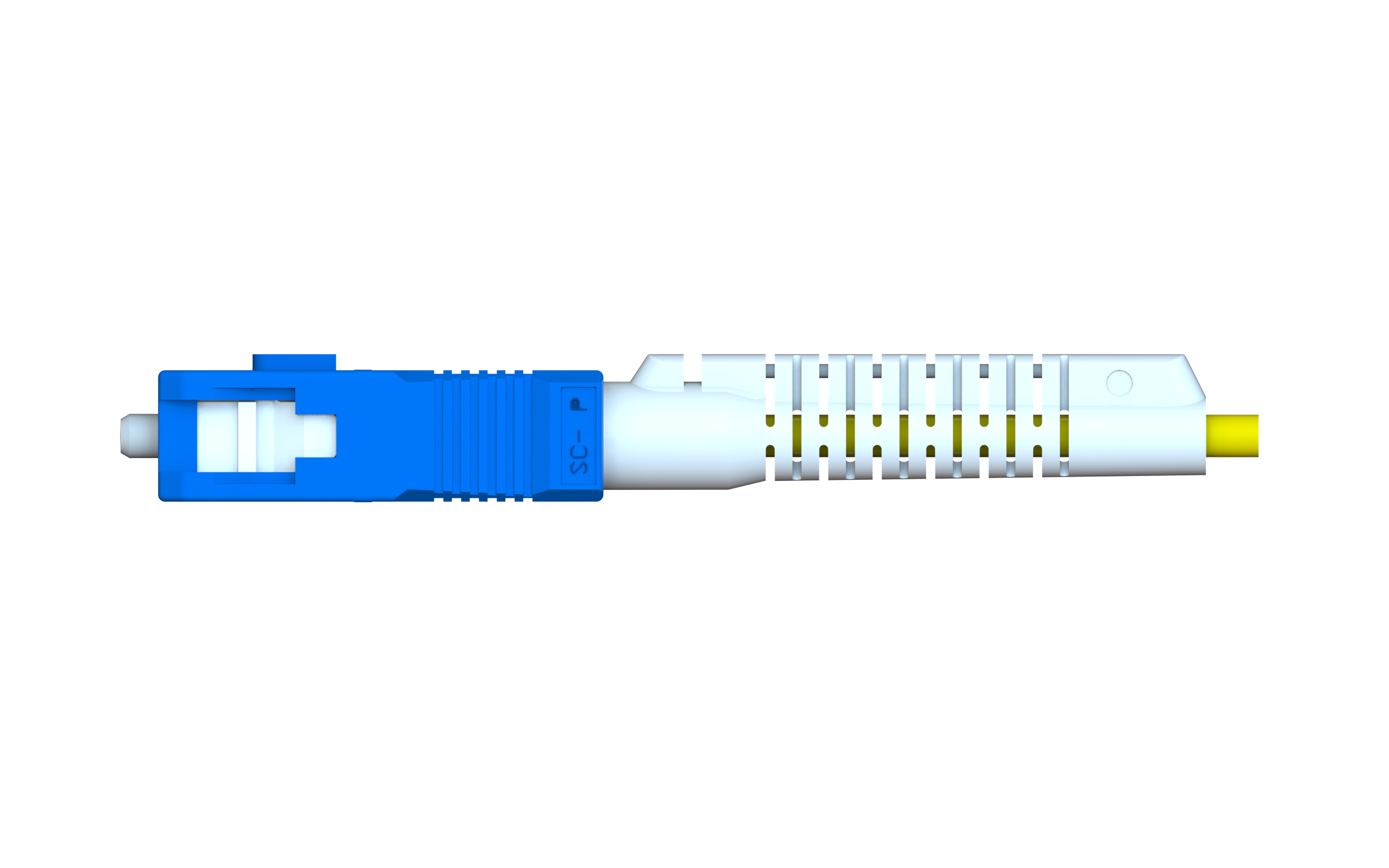

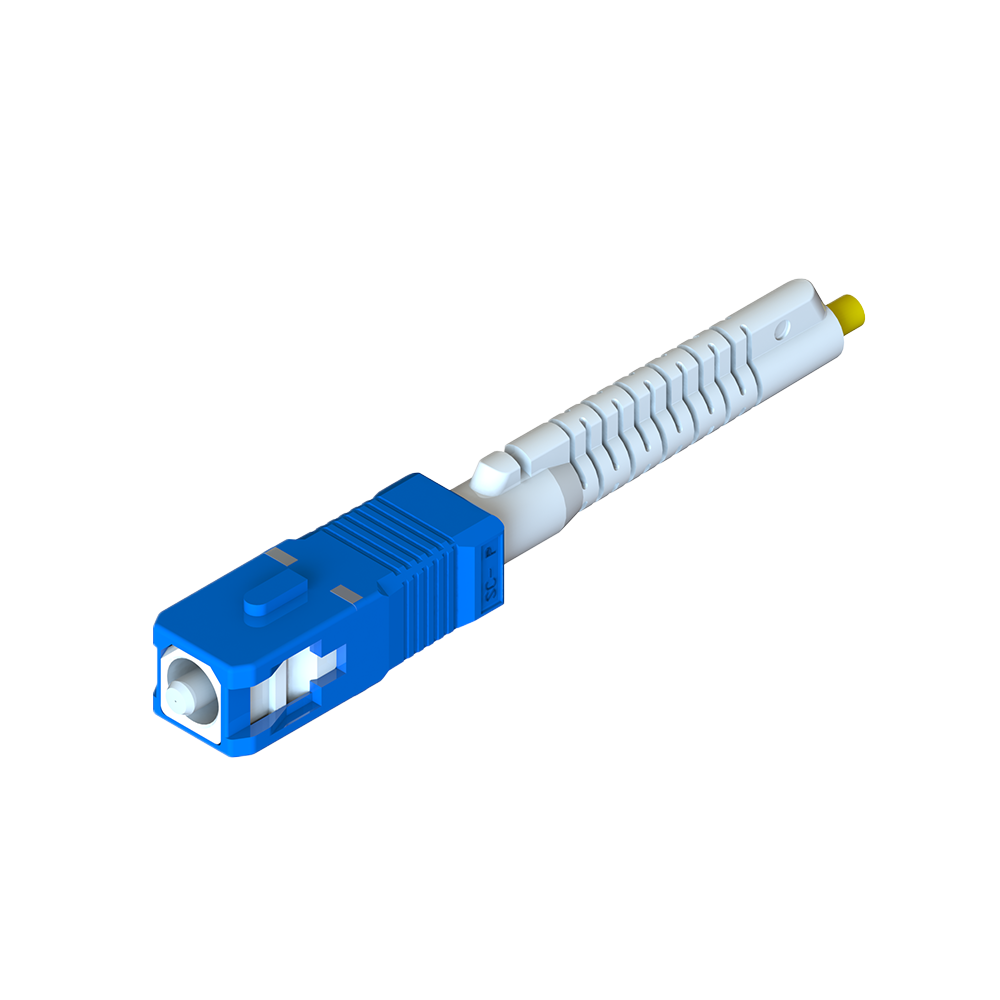

SC Bendi Boot Connector

Our SC Bendi Boot is specially designed to offer versatility, freedom of movement, and superior access to high-density panels. Compatible with SC Type cable systems, the SC Bendi Boot can be easily positioned by hand and maintain any angle to provide better access to panels. For added versatility, a unique duplex clip can be used to modify two simplex connectors into one duplex connector.

Housing Color

Boot Color

SC Bendi Boot Connector

Product Features

Bendable boot maintains any angle

Provides more access to panels

Assists in cable management

Fiber Type：SM（9/125），MM（50/125，62.5/125）

Adaptation Pattern：SM，MM，APC

Insertion Loss：0.3dB or lower

Return Loss：UPC（55dB or more) ,APC（65dB or more）

Reference Standard：IEC-61754-4-SC:2002,IEC-61755-3-2 and TIA-604-3-B

Select the product specifications here

01

Sort

Model List

Body Type		Mode		Product Type		Cable Spec		Housing Color		Ferrule Type & ID		Concentricity		Boot Type		Boot Color		Dust Cap Type		Shrink Tube Type
SC	SC Connector	SS	Single Mode Simplex	P	Per Assy	20	Φ 2.0mm Cable	AQ	Aqua	F50	Pre Radius 125.0um	05	0.5um	BB	Bendi Boot	BG	Beige	T	T Dust Cap	W	White
		MS	Multi Mode Simplex	K	Kit	30	Φ3.0mm Cable	BG	Beige	F55	Pre Radius 125.5um	10	1.0um (Standard)			BL	Blue			Y	Yellow
		AS	APC Simplex					BK	Black	F60	Pre Radius 126.0um	40	4.0um			GR	Green			WW	White & White
		SD	Single Mode Duplex					BL	Blue	S50	Step 125.0um (APC)					WH	White			WY	White & Yellow
		MD	Multi Mode Duplex					GR	Green (APC)	C50	Conical 125.0um (APC)									YY	Yellow & Yellow
		AD	APC Duplex					LG	Lime Green

SC Duplex Bendi Boot Connector 2.0mm

2026.03.05

pdf
SC Simplex Bendi Boot Connector 2.0mm

2026.03.05

pdf

SC Duplex Bendi Boot Connector

2026.03.06

pdf
