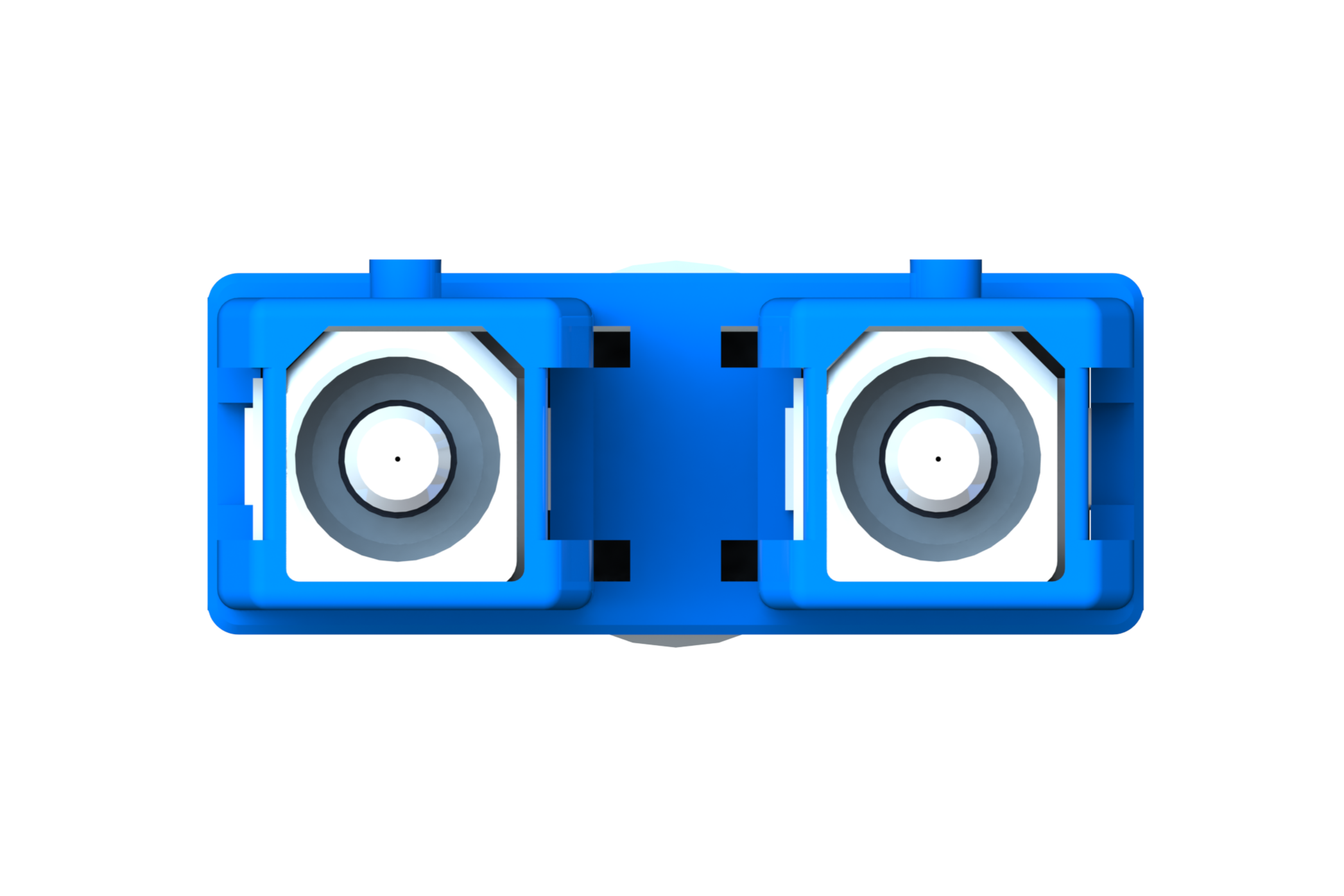

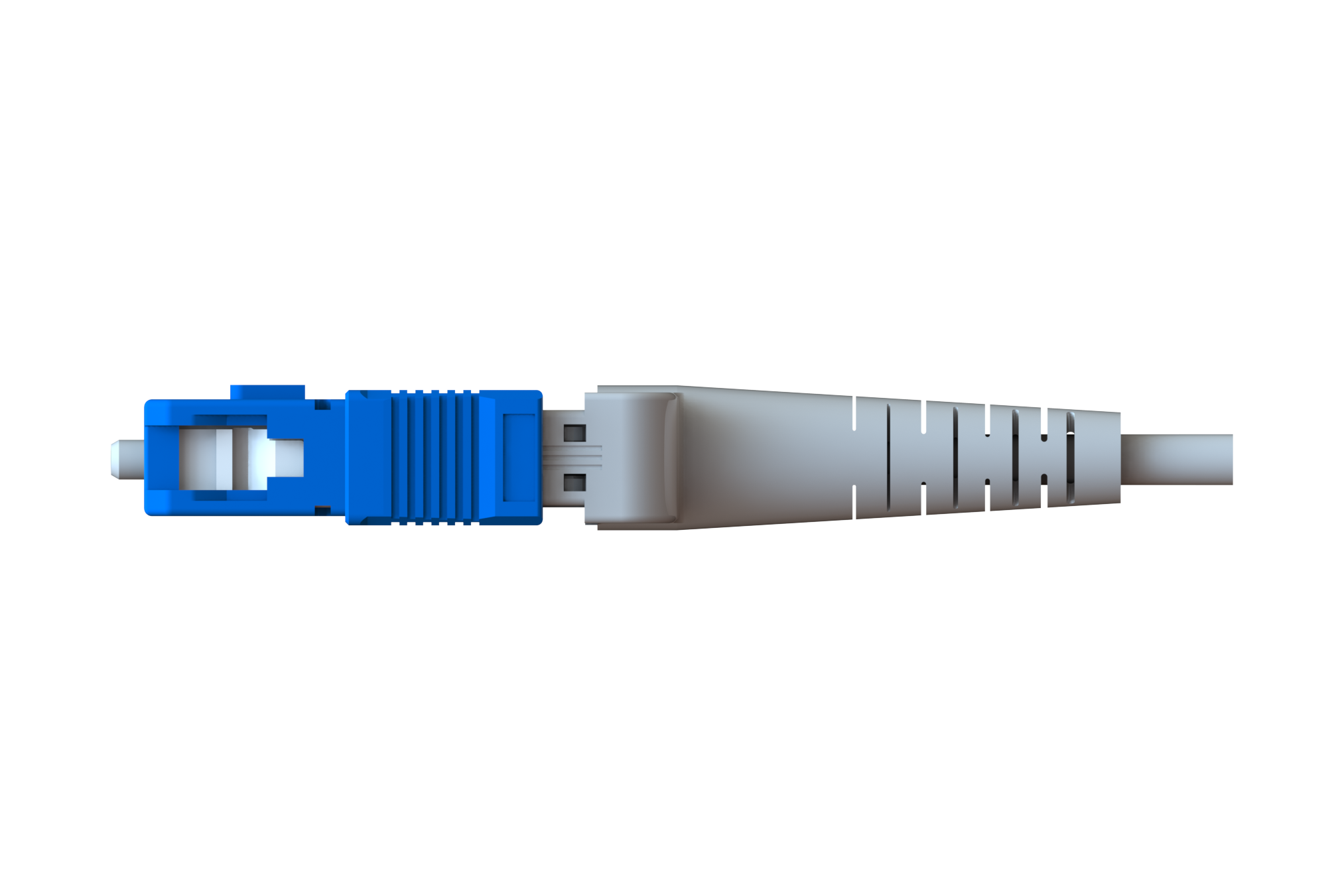

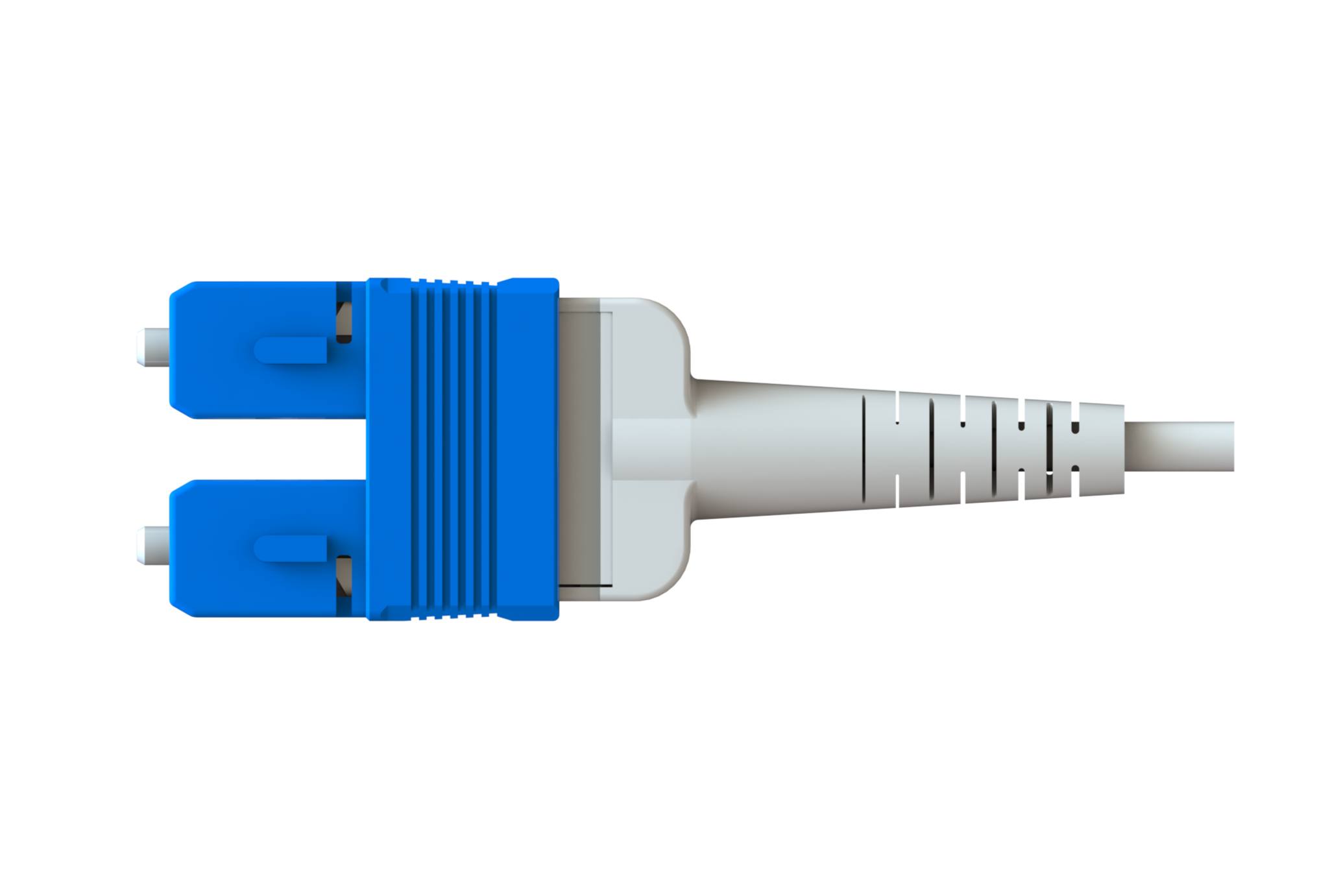

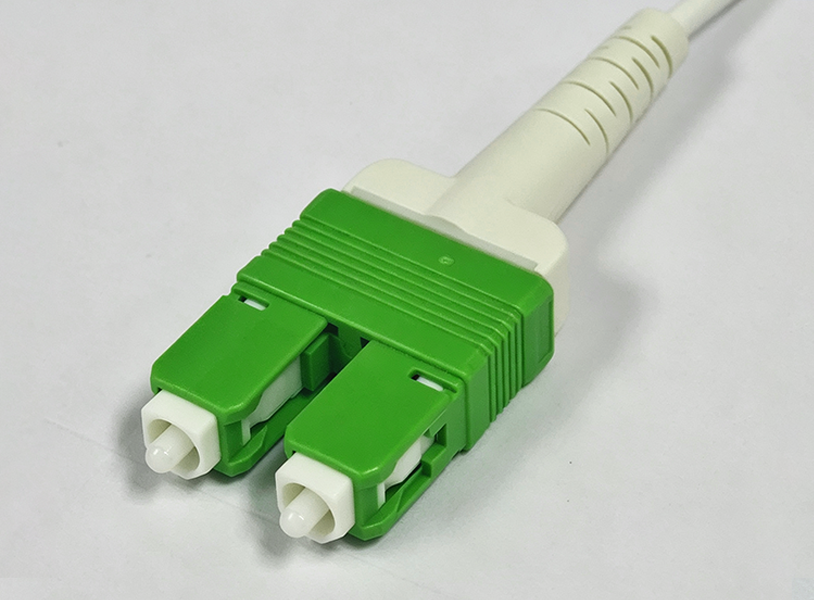

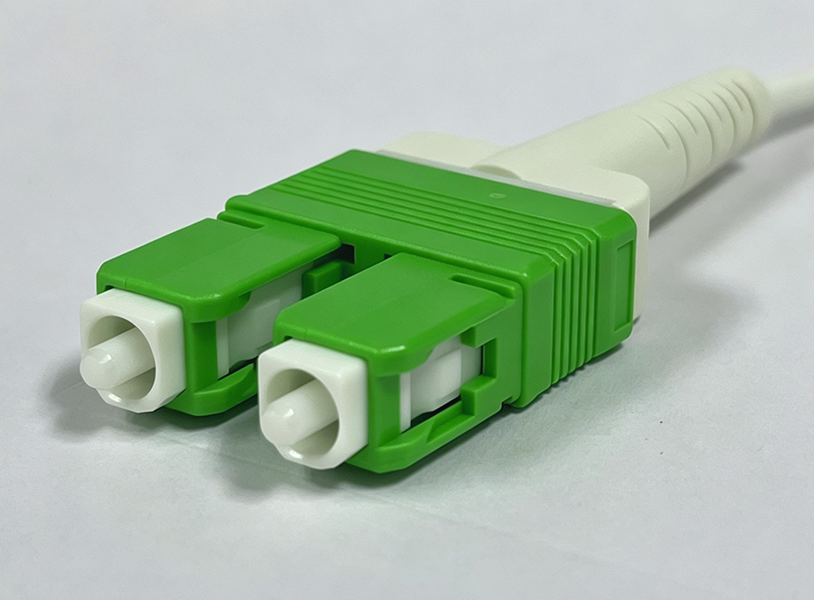

SC Uniboot Connector

Our SC Uniboot Connectors feature a compact, lightweight design perfect for high-density applications. The durable stop-ring and crimp-ring structures provide a strong retention force to ensure continued high performance and stability.

Housing Color

Boot Color

SC Uniboot Connector

Product Features


Easy push-pull connect/disconnect design
Strong retention force


Fiber Type：SM（9/125），MM（50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.3dB or lower
Return Loss：UPC（55dB or more) ,APC（65dB or more）
Reference Standard：IEC-61754-4-SC:2002,IEC-61755-3-2 and TIA-604-3-B

Select the product specifications here

  • 01

    Sort

Model List

Body TypeModeProduct TypeCable SpecHousing ColorFerrule Type & IDConcentricityBoot ColorDust Cap TypeShrink Tube Type
SCSC ConnectorS1Single Mode SimplexPPer Assy20Φ 2.0mm CableAQAquaP50Pre Radius 125.0um050.5umAQAquaTT Dust CapW
White



M1Multi Mode Simplex

30Φ 3.0mm CableBGBeigeP55Pre Radius 125.5um101.0um
(Standard)		BGBeige





A1APC Simplex



BLBlueP60Pre Radius 126.0um404.0umBLBlue











GRGreen (APC)S50Step 125.0um (APC)

GRGreen (APC)













C50Conical 125.0um (APC)

WHWhite













LGLime
Green















































  • SC Uniboot Connector

    2026.03.05
    pdf

  • SC Uniboot Connector 5.0mm

    2026.03.06
    pdf

  • SC Uniboot Connector

    2026.03.06
    pdf

  • SC Uniboot Connector 2.0mm V1.0

    2026.03.06
    pdf

  • SC Uniboot Connector 2.0mm V1.1

    2026.03.06
    pdf
