LC 5.0mm Uniboot Connectors

Designed for stronger cable retention forces needed in FTTA applications.

• Metal on metal crimp design significantly improves pull force performance

• Strong cable retention force

• Simple click & flip polarity changes

Features and Specifications:

    - Click and flip polarity change requires no jig/tools

    - Eliminates fiber exposure during polarity change process

    - IEC-61754-20 and TIA-604-10A-2002 Standard-Type LC

    - Fiber Type: SM (9/125), MM (50/125, 62.5/125)

    - Application Mode: SM, MM, APC

    - Insertion Loss: 0.3dB or lower

    - Return Loss: 55dB or more UPC, 65dB or more APC

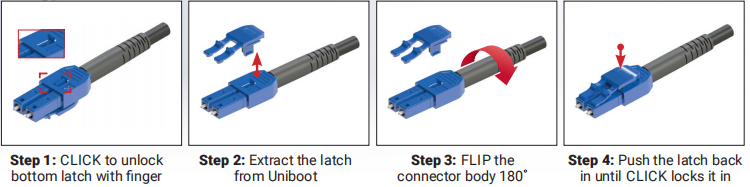

CLICK & FLIP POLARITY CHANGE PROCESS

    Step 1: CLICK to unlock bottom latch with finger

    Step 2: Extract the latch from Uniboot

    Step 3: FLIP the connector body 180˚

    Step 4: Push the latch back in until CLICK locks it in
