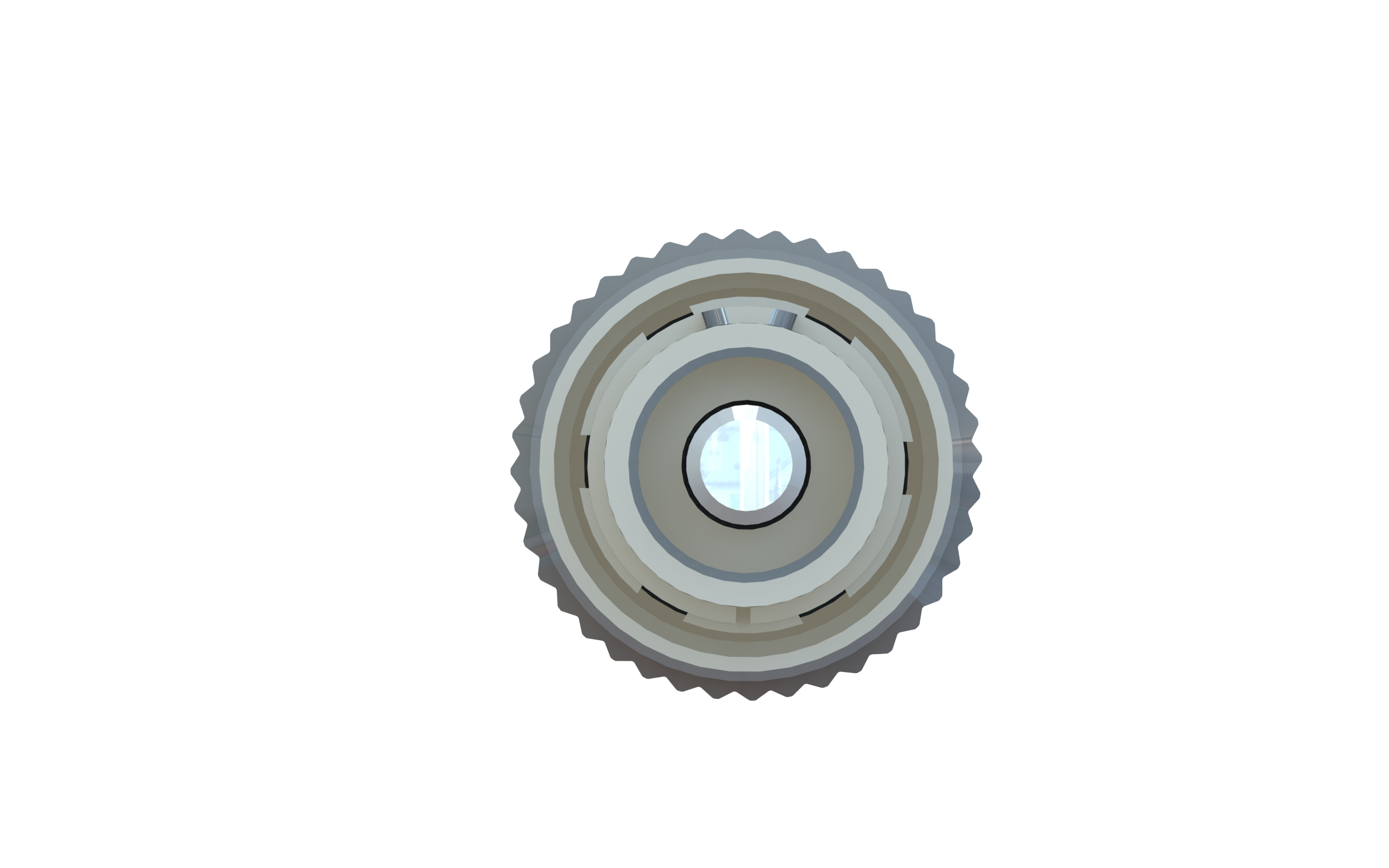

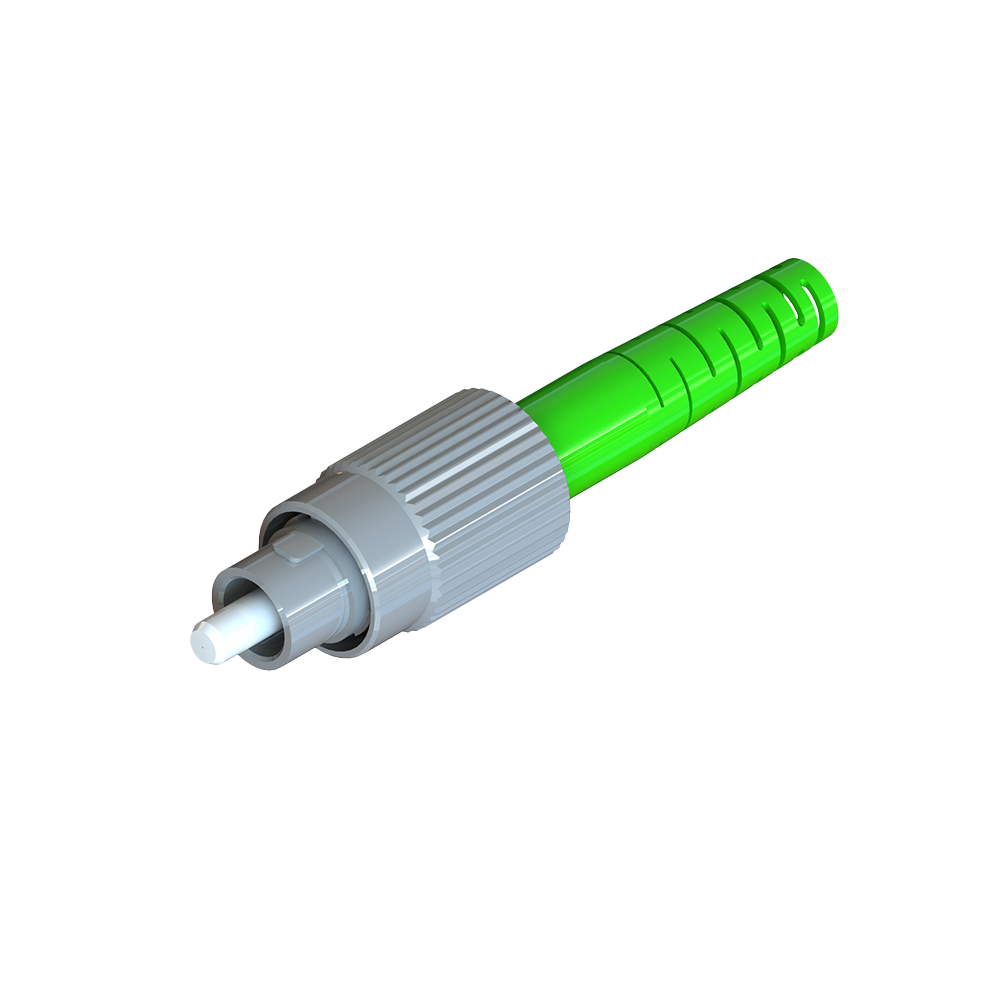

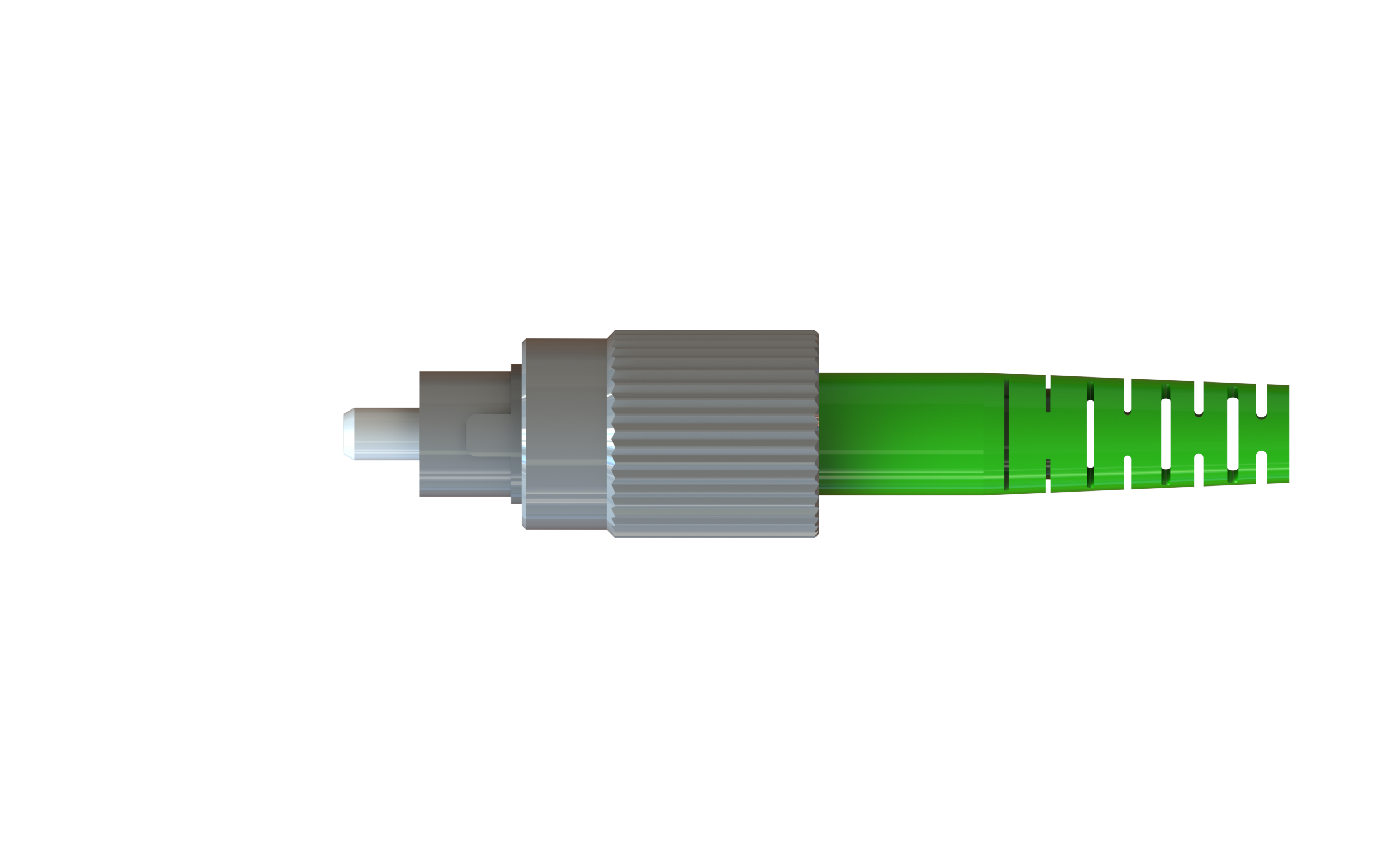

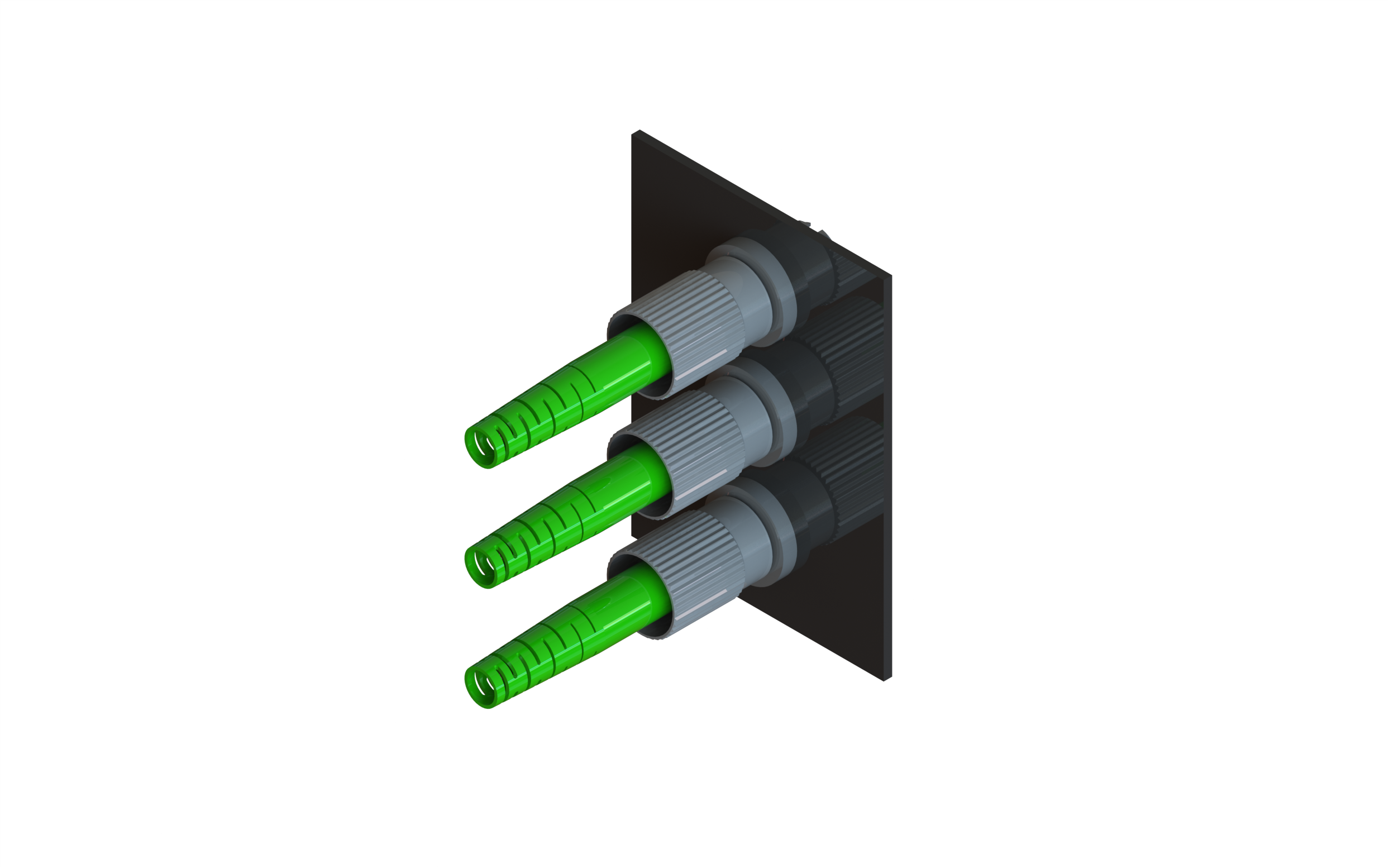

FC Simplex Connectors

FC Simplex Connectors provide a simple, screw-threaded coupling design for added reliability and connection strength. Accommodating 0.9mm, 2.0mm and 3.0mm boot connectors, FC Simplex Connectors are suitable for single, multi-mode and APC applications.

Boot Color

FC Simplex Connectors

Product Features

Compact threaded coupling design enhances connection reliability and strength

Compatible with 0.9mm, 2.0mm, 3.0mm boot sizes

Suitable for SM, MM, APC applications

Fiber Type：SM（9/125），MM（50/125，62.5/125）

Adaptation Pattern：SM，MM，APC

Insertion Loss：0.3dB or lower

Return Loss：UPC（55dB or more) ,APC（65dB or more）

Reference Standard：IEC-61755-3-2 and IEC 61754-13

Select the product specifications here

01

Sort

Model List

Series		Mode		Product Type		Cable		Housing Color		Ferrule Type & ID		Concentricity		Boot Type		Boot Color		Dust Cap Type
FC0	FC Connector(Key 2+0/-0.15)	SM	Single Mode Simplex	P	Pre Assy	09	φ0.9mm Cable	NO	Matal	P50	Pre Radius 125.0um	05	0.5um	BC	2.0mm/3.0mm	AQ	Aqua	T	T Dust Cap
		MS	Multi Mode Simplex			20	φ2.0mm Cable			P55	Pre Radius 125.5um	10	1.0um	RB	0.9mm	BG	Beige
		AS	APC Simplex			30	φ3.0mm Cable			P60	Pre Radius 126.0um	40	4.0um			BL	Blue
										S50	Step 125.0um(APC)	BL	Blue			GR	Green
										C50	Conical 125.0um (APC)	BR	Brown			HV	Heather Violet
												GR	Green			WH	White
												HV	Heather Violet
												LG	Lime Green
												OR	Orange
												RE	Red
												VT	Violet
												YE	Yellow

FC Simplex Connectors

Boot Color

FC Simplex Connectors

Product Features

Compact threaded coupling design enhances connection reliability and strength

Compatible with 0.9mm, 2.0mm, 3.0mm boot sizes

Suitable for SM, MM, APC applications

Select the product specifications here

01

Sort

Model List
