ST Simplex Connectors

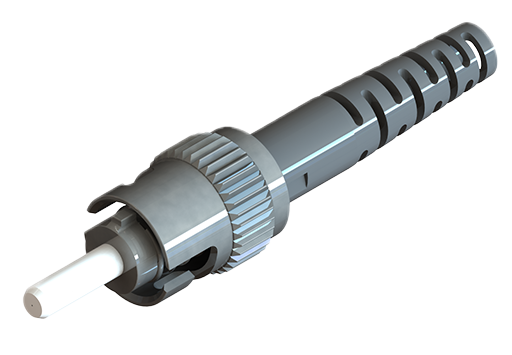

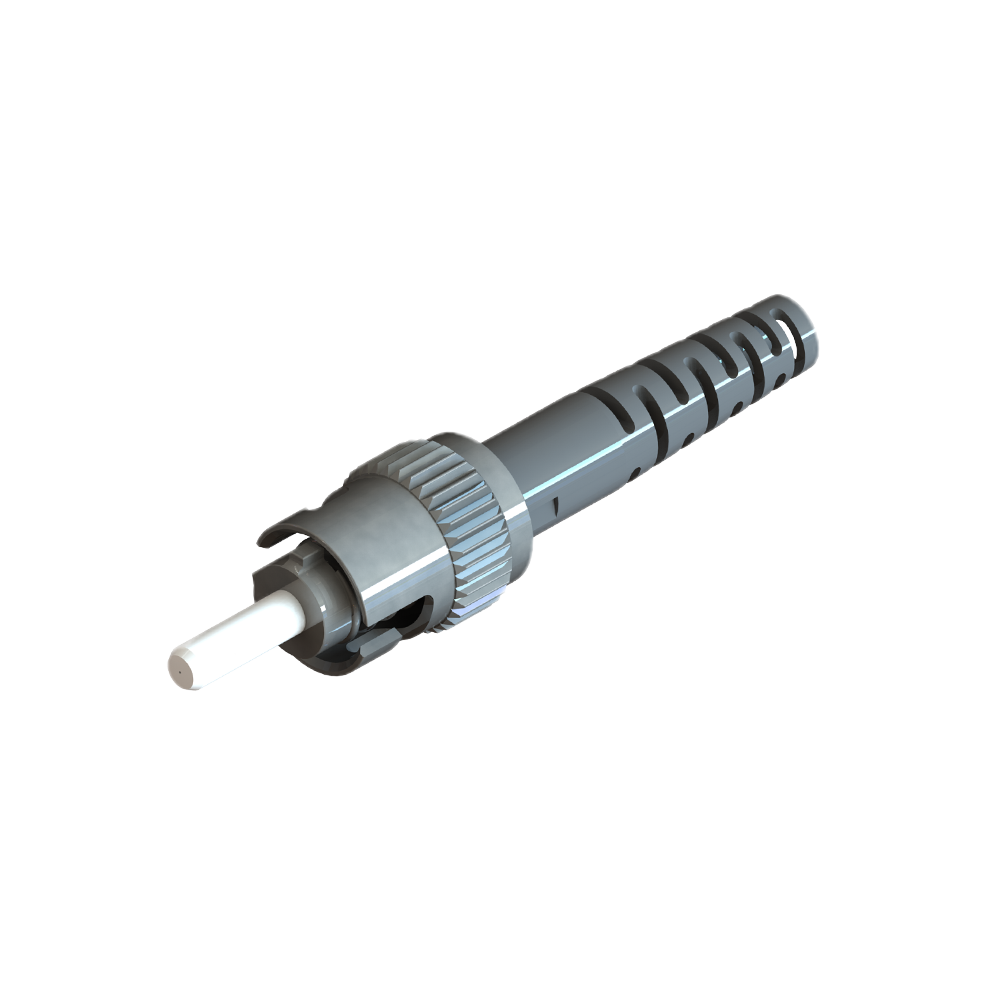

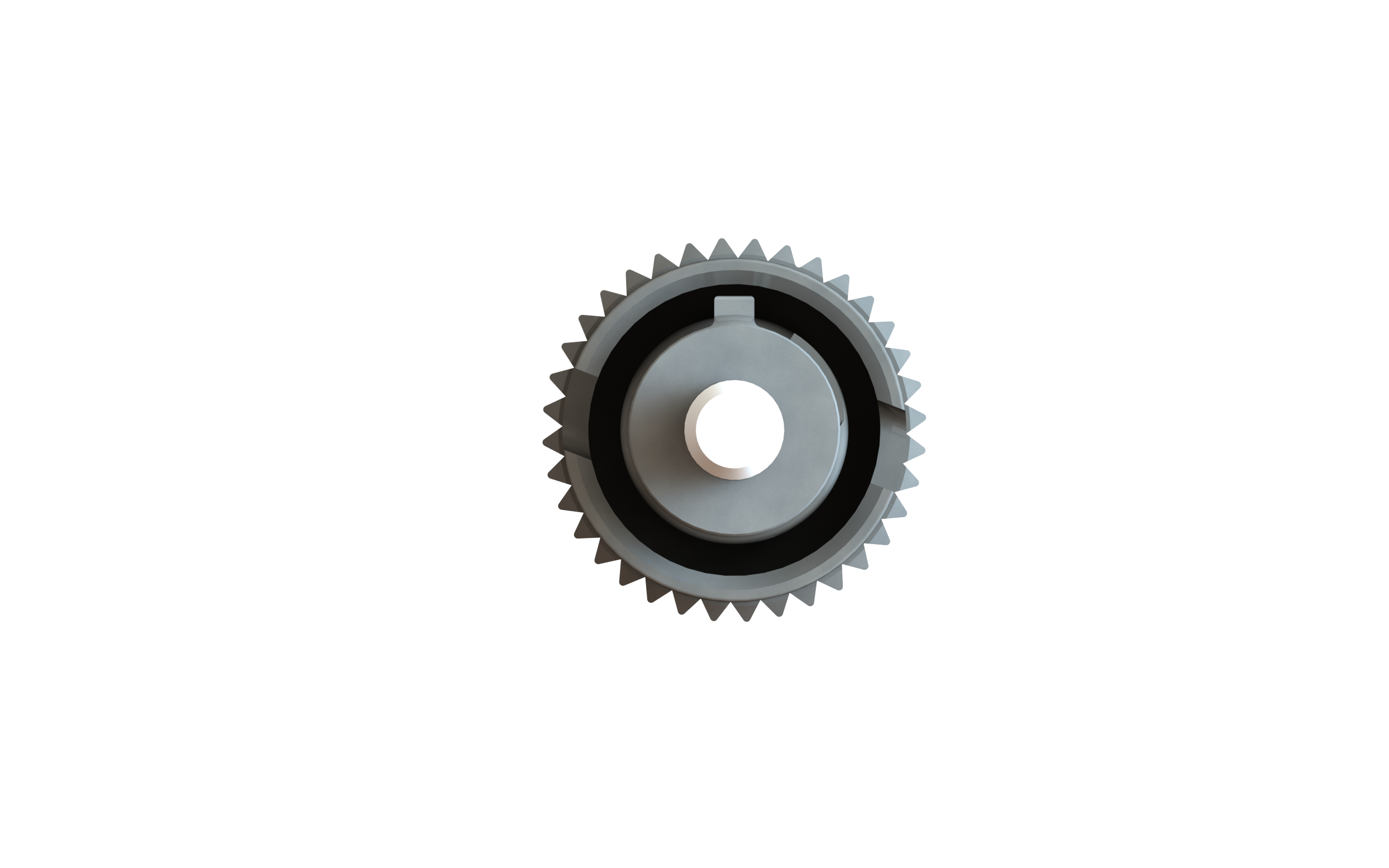

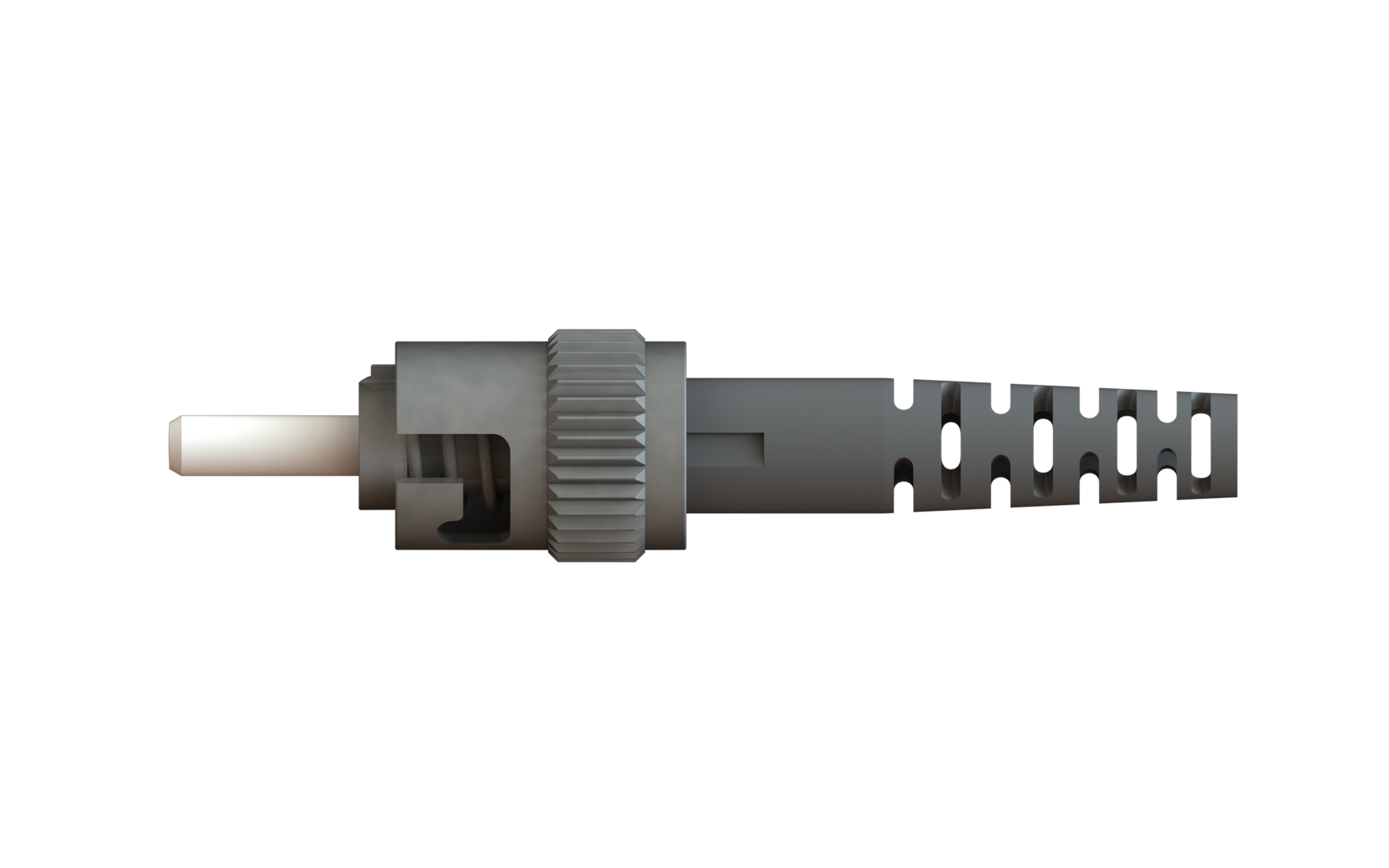

Our reliable ST Simplex Connectors feature a quick release bayonet-style mount and a long, cylindrical 2.5mm ceramic ferrule allowing for easy insertion and removal. These spring-loaded connectors maintain a stable connection for use with both short-and long-line systems.

Boot Color

ST Simplex Connectors

Product Features


Equipped with quick-release bayonet mounting structure
Features 2.5mm long cylindrical ceramic ferrule for easy plugging and unplugging
Built-in spring ensures stable connection, suitable for short‑haul and long‑haul transmission systems


Fiber Type：SM (9/125)，MM (50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.3dB or lower
Return Loss：UPC (55dB or more)，APC (65dB or more）
Reference Standard：IEC-60874-10-1, IEC-61755-3-1 and TIA-EIA-604-2

Select the product specifications here

  • 01

    Sort

Model List

SeriesModeProduct TypeCable SpecHousing ColorFerrule Type & IDConcentricityBoot TypeBoot ColorDust Cap TypeShrink Tube Type
STST ConnectorSSSingle Mode Simplex P Pre Assy09Φ 0.9mm CableNOMetalF50Pre Radius 125.0μm050.5umBCBellcore Boot (2.0/3.0mm)BGBeigeTT Dust CapNNo tube (0.9/ 3.0mm)


MSMulti Mode Simplex

20Φ2.0mm Cable

F55Pre Radius 125.5μm101.0umMBMiddle Boot (2.0/3.0mm)BLBlue

WWhite


ASAPC Simplex

30Φ3.0mm Cable

F60Pre Radius 126.0μm404.0umRBRubber Boot (0.9mm)BKBlack

YYellow










S50Step 125.0um (APC)

SBShort Boot (0.9/2.0mm)GRGreen













C50Conical 125.0um (APC)



WHWhite
