LC Push-Pull Uniboot ConnectorsNEW LC SLIMPACK INTERNAL SHUTTER CLUSTER ADAPTERS

LC 5.0mm Uniboot Connectors

• Metal on metal crimp design significantly improves pull force performance

• Strong cable retention force

• Simple click & flip polarity changes


Designed for stronger cable retention forces needed in FTTA applications

- Click and flip polarity change requires no jig/tools

- Eliminates fiber exposure during polarity change process

- IEC-61754-20 and TIA-604-10A-2002 Standard-Type LC

- Fiber Type: SM (9/125), MM (50/125, 62.5/125)

- Application Mode: SM, MM, APC

- Insertion Loss: 0.3dB or lower

- Return Loss: 55dB or more UPC, 65dB or more APC

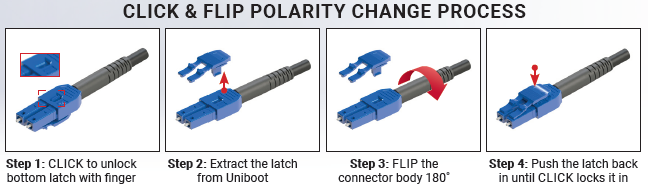

GR-CLICK & FLIP POLARITY CHANGE PROCESS
